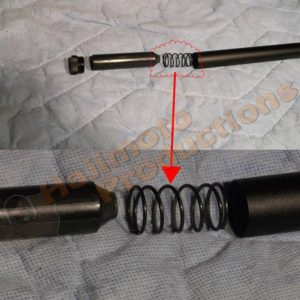

Umarex Gauntlet Baffle Spring

Related products

•

  $47.00

  Air Stripper, Tension Spring and Baffle Stack

  HP Strip Stak Pak for Avenger

  $47.00

  UPDATE: The newer avengers have a screw-on barrel shroud and an end cap that is a two-piece unscrewable but the STP still fits and works without an issue. unscrew the shroud rather than the little screw shown in the video and simply unscrew the baffle washer array off the end cap and you are good to go.

  Strip Stak Pak for the Avenger

  A six piece kit that includes an efficient multiport air stripper that strips and channels air away from the pellet to allow for a more stable and less turbulent pellet launch from the muzzle. The kit also provides baffle chambers to help remove both noise and turbulence in the air stream. The end result is a more laminar air stream which reduces projectile instability and as a secondary benefit, reduces the report of the rifle. This kit is 100% compatible with the stock end cap or the DonnyFL A50 adapter.
  Air Stripper comes with o-ring and silicone grease for installation. The installation video for the Umarex Origin Strip Stak Pak is exactly the same so you can follow the installation video below.

  Replacement Air Stripper 0-ring is 14mm x 1.5mm



  Select options This product has multiple variants. The options may be chosen on the product page

•

  $299.00 – $310.00Price range: $299.00 through $310.00

  5/8″-18UNF Threaded Unit

  Flex Reg Hajimoto Configurations

  Rated 4.00 out of 5

  $299.00 – $310.00Price range: $299.00 through $310.00



  NOTE: THE NINJA FLEX REGULATOR HAS A LIMITED INVENTORY



  Ninja Paintballs’ Flex Reg with Custom Gauntlet Configuration.
  Say goodbye to only one fixed output pressure!
  The user has an 800 – 1000 psi adjustment swing!
  Requires minor forestock modification.
  The regulator thread is 5/8-18UNF (Bottle Thread) and Typical Paintball Threads of .825-14 NGO (PCP Thread).


  Please note the Flex regulator can be used with any Air, Co2, or Nitrogen driven air gun not just the Gauntlet,  providing it has the correct threading.

  The Ninja Flex regulator is available in any 900 psi spread to a maximum of 3100 psi output. For the Gauntlet, select the proper configuration.
  If you select the Custom Configuration, you will need to use the NOTES above to communicate what you want the maximum output to be. Please note that the highest output the Flex Regulator can be configured for is 3100 PSI, but we can build it to any number below that.  Example, a user wants the maximum output of their Flex regulator to be 2800, we will build the regulator so that the adjustable range of that build is 1800 to 2800PSI.

  How to read the below configurations
  Example: Flex Reg .22 | 4500/1600 to 2400 psi
  Flex Reg .22 = Regulator Type for .22 caliber
  4500/ = The bottle’s maximum fill pressure
  1600 to 2400 psi = The output range of the Flex Reg

  Flex Reg Configuration For Generation 1 Gauntlet .177/.22 Cal
  Stock .177/.22 | 3000/1100PSI Regulator
  Flex Reg .177/.22 |3000/600 to 1500PSI

  Flex Reg Configuration For Generation 1 Gauntlet .25 Cal
  Stock .25 | 3000/1900PSI Regulator
  Flex Reg .25 | 3000/1500 to 2400PSI

  Flex Reg Configuration For Generation 2 Gauntlet .22 Cal
  Stock .22 | 4500/1900PSI Regulator
  Flex Reg .22 | 4500/1500 to 2400PSI

  Flex Reg Configuration For Generation 2 Gauntlet .25 Cal
  Stock .25 | 4500/2100PSI Regulator
  Flex Reg .25 | 4500/1500 to 2400PSI

  Flex Reg Configuration For G30 Cal
  Stock .30 | 4500/2800PSI Regulator
  Flex Reg .30 | 4500/2100 to 3100PSI

  Comes with a dedicated Spanner Wrench for power adjustment. MADE IN THE USA!

  Select options This product has multiple variants. The options may be chosen on the product page

•

  $15.00 – $26.00Price range: $15.00 through $26.00

  For G1 G2 & G30 Variants

  Umarex Gauntlet Tune O-ring Kit -NO-RING

  $15.00 – $26.00Price range: $15.00 through $26.00

  Hajimoto Productions Tuning O-ring kit for the Gauntlet and Gauntlet 2

  Now includes two of my “NO RING” pellet probe seals as HP-1 rather than the typical high wear donut orings.



  I have put together the most common o-rings that fail during a tuning session. Most of the stock o-rings for the internals will gouge when the airgun is disassembled, this kit will allow you multiple attempts should any of the o-rings fail. Please note that the .30 caliber uses completely different internal o-rings than all previous Gauntlet Models including the .30 cal exclusive transfer port orings Which will be bagged as TP.

  Some of the NO-Ring seals have the leading edge precision ground.


  These tapered / precision ground types need to be installed as shown below



  (Images are of the .30 caliber NO RING)

  You get:

  • 2  of pellet probe NO-ring seals.
  • 2 sets of barrel o-rings.
  • 2 sets of tank block o-rings.
  • 2  of valve body o-rings.
