Top Product Categories
-
Sale!
360CC 4.5K PSI M18 Threaded CF Tank
0.36L M18 Thread Carbon Fiber Tank
$135.00 – $140.00Select options -
11.4cc plenum expansion for Avenger
Doux – Avenger Power Plenum
$55.00Select optionsAVENGER/LEVIATHAN POWER PLENUM:
- SIZE: 11.4cc
- STACKABLE
- BLACK ANODIZED WITH MATT BLACK GUN COATING
- TYPICAL PERFORMANCE INCREASE IS AROUND 20FT/S WITH NO OTHER MODIFICATIONS.
THIS PLENUM IS NOT DESIGNED TO NOT FIT THE BULL PUP VERSION
INSTALLATION CAN BE MADE USING TYPICAL SNAP RING PLIERS
MADE IN SOUTH AFRICA
Installation video below
-
370cc/.37L CE 5/8″ Threaded
22.5ci Carbon Fiber 4500PSI Tank
$200.00Select optionsIntroducing a Hajimoto Productions Exclusive offer!
- Shaves a pound of weight off your G2 or G30.
- 22.5ci/370cc/.37L CE Certified CF Tank.
- 5/8”-18UNF Threaded so Stock Gauntlet Regulators will thread directly to this bottle.
Installs on the Gauntlet 2 with minor tank shroud modifications, forearm slides right over the carbon fiber cylinder.
The CF Tank is CE Certified and made to ISO 11119-3 standard. They have seamless aluminum alloy 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. This is a 22.5ci / 370cc carbon fiber 4500psi max fill cylinder.
The diameter of the tank is 54-55mm across so a modification to the forearm is required on a Gauntlet 1. I offer a tank shroud modification service for Gauntlet 1 owners that can be added to a build or provided as a mail-in service.
Please be careful if you have accessories on any of the M-Lok openings as the screws or MLok fasteners may protrude into the tank area and scratch the tank when the shroud is slid forward or back. We recommend that if you have any MLok accessories installed, you remove them when sliding the shroud on or off. We also recommend covering the brass inserts in the tank shroud with cloth tape to protect your carbon fiber finish.
-
Sale!
0.5L/500cc CE Certified CF Tank
0.50L Carbon Fiber Tank 4500PSI
$260.00Original price was: $260.00.$220.00Current price is: $220.00. -
PCP Air Compressor Filter 4500psi Oil Water Separator
$110.00 – $175.00Select optionsA quality water, oil and odor filter system designed to protect your PCP’s! Consider selecting the combinations that come with the extra-length fill whip so you can stand your filter up and down and still have plenty of slack to connect to your PCP.
Whether you are using a hand pump or a personal compressor it is vitally important that only clean dry air be introduced in your air reservoir.
Made from high-quality aircraft aluminum and is rated for safe use.
Don’t make the mistake of not drying your air as it will destroy regulators as well as your aluminum pressure vessels.
-
4.5K PSI Ninja Reg on a 18ci/295cc/.29L CE Certified CF Tank
Ninja Reg on 18ci Carbon Fiber Bottle
$274.00Select optionsDirect replacement with no modifications required for the Umarex Gauntlet 2 & G30/G30SL!
18ci/295cc/.29L 4500 PSI Carbon Fiber Bottle
Hajimoto is bringing sexy back! Doesn’t that carbon fiber look awesome on there!
Includes Ninja’s HP regulator.
The CF Tank is CE Certified made to ISO 11119-3 standard. They have seamless aluminum alloy 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. This 4500 PSI carbon fiber bottle is 18ci and is absolutely gorgeous on the Gauntlet 1 or Gauntlet 2.The Gauntlet 1 will need to increase its tank shroud inside diameter to allow the foregrip/tank cover to side over this carbon fiber tank.
Operating Pressure Recommendations
Gauntlet 1:
.177/.22 Stock operating pressure 1100PSI Max Recommended pressure is 1400PSI.
.25 Caliber Stock operating pressure 1900PSI Max Recommended pressure is 2100PSI.
Gauntlet 2:
.22 Stock operating pressure 1900PSI Max Recommended pressure is 2100PSI.
.25 Caliber Stock operating pressure 2100PSI Max Recommended pressure is 2300PSI.Gauntlet 30/30SL:
Stock operating pressure 2800PSI Max Recommended pressure is 3100PSI.NINJA REGULATORS ARE MADE IN THE USA!
-
Sale!
Flex reg and 30ci/500cc/.5L CE Certified CF Tank
Power Flex Combo 30ci/.5L Carbon Fiber 4500PSI
$359.00 – $369.00Select optionsPlease note that this combo will not fit a Gauntlet or Gauntlet 2 as the tank diameter is larger than the rifle’s tank shroud will allow. This combo is intended for builds that do away with the tank shroud or to be used on other PCP’s that allow for a typical paintball regulator installation.
Introducing a Hajimoto Productions Exclusive offer!
30ci/500cc/.5L CE Certified CF Tank
Newly redesigned unit
Now has a high pressure and low pressure burst discs!
The CF Tank is CE Certified made to ISO 11119-3 standard. They have seamless aluminum alloy 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. This includes a 30ci/500cc/.5L CE Certified 4500PSI cylinder with externally adjustable Ninja Flex Reg for your custom build.
The Power Flex Combo allows the user to externally adjust the regulator output pressure on the fly with an adjustment range of 900PSI!
Comes with a dedicated Spanner Wrench for power adjustment. MADE IN THE USA!
Because of practical limitations, regulator output will be +/- 75PSI (3.5bar) within the requested output.
-
Sale!
The Haji-Notos Power Plant
Huben Power – Dream-Notos TK
$175.00Original price was: $175.00.$160.00Current price is: $160.00.Genuine Huben Power Regulator with Power Plenum
This is the Power Plant that we use for our Haji-Notos build. It allows for precise power adjustment allowing the Notos to deliver only the power required for the situation. If you want to shoot pest birds in a barn or feed house, you can dial it back to fly pellets as low as 400 ft/s, or if you are hunting grey squirrels and want to deliver a JSB Hades 15.89 gr at over 750 ft/s you can do that too.
FEATURES
- Externally adjustable Regulator Output 500psi~3600psi
- Ultra-stable output pressure
- Power Plenum with rotatable joint for perfect clocking, locked in place with set screws.
- Standard 8mm quick disconnect male foster fitting adapter for filling.
- Built-in Picatinny Rail Section for Bipod or Tripod Shooting.
- Tank Threads : M18*1.5
- Power Increase on the fly but decrease requires degassing the plenum.
** BE SURE TO READ DETAILS BELOW **
-
Sale!
Huben Power Dream-Notos TK with 0.30L or 0.36L CF Tank
Haji-Notos Power Plant Combo
$275.00 – $305.00Select optionsGenuine Huben Power Dream-Notos TK mounted on a.30L (300cc) or 0.36L (360CC)
A complete Haji-Notos Power Plant Combo. It allows for precise power adjustment allowing the Notos to deliver only the power required for the situation. If you want to shoot pest birds in a barn or feed house, you can dial it back to fly pellets as low as 400 ft/s, or if you are hunting grey squirrels and want to deliver a JSB Hades 15.89 gr at over 750 ft/s you can do that too.
FEATURES
- Includes 0.30L or 0.36L 4500psi Carbon Fiber Bottle in Gloss or Matte Black.
- Extremely stable externally adjustable regulator Output 500psi~3600psi
- Provides over 130 shots.
- Ultra-stable output pressure
- Power Plenum with rotatable joint for perfect clocking, locked in place with set screws.
- Standard 8mm quick disconnect male foster fitting adapter for filling.
- Built-in Picatinny Rail Section for Bipod or Tripod Shooting.
- Power Increase on the fly but decrease requires degassing the plenum.
See details below
-
Sale!
1/8″ NPT Thread 5000psi WHITE
24MM Mini Gauge 5K (WHITE)
$40.00Original price was: $40.00.$23.00Current price is: $23.00.Small 1/8″ threaded 5000psi PCP gauge.
Fits Ninja Paintball Regulators
-
Sale!
1/8″ NPT Thread 3500psi COLOR
24MM Mini Gauge 3.5K (COLOR)
$40.00Original price was: $40.00.$23.00Current price is: $23.00.Small 1/8″ threaded 3500psi PCP gauge.
Fits Ninja Paintball Regulators
-
5/8″-18UNF Threaded Unit
Flex Reg Hajimoto Configurations
Rated 4.00 out of 5$159.00 – $169.00Select optionsNinja Paintballs’ Flex Reg with Custom Gauntlet Configuration.
Say goodbye to only one fixed output pressure!
The user has an 800 – 900 psi adjustment swing!
Requires minor forestock modification.
The regulator thread is 5/8-18UNF (Bottle Thread) and Typical Paintball Threads of .825-14 NGO (PCP Thread).
Please note the Flex regulator can be used with any Air, Co2, or Nitrogen driven air gun not just the Gauntlet, providing it has the correct threading.
The Ninja Flex regulator is available in any 900 psi spread to a maximum of 3100 psi output but for the Gauntlet select from the proper configuration.
If you select the Custom Configuration, you will need to use the NOTES above to communicate what you want the maximum output to be.How to read the below configurations
Example: Flex Reg .22 | 4500/1600 to 2400 psi
Flex Reg .22 = Regulator Type for .22 caliber
4500/ = The bottle’s maximum fill pressure
1600 to 2400 psi = The output range of the Flex RegFlex Reg Configuration For Generation 1 Gauntlet .177/.22 Cal
Stock .177/.22 | 3000/1100PSI Regulator
Flex Reg .177/.22 |3000/600 to 1500PSIFlex Reg Configuration For Generation 1 Gauntlet .25 Cal
Stock .25 | 3000/1900PSI Regulator
Flex Reg .25 | 3000/1500 to 2400PSIFlex Reg Configuration For Generation 2 Gauntlet .22 Cal
Stock .22 | 4500/1900PSI Regulator
Flex Reg .22 | 4500/1500 to 2400PSIFlex Reg Configuration For Generation 2 Gauntlet .25 Cal
Stock .25 | 4500/2100PSI Regulator
Flex Reg .25 | 4500/1500 to 2400PSIFlex Reg Configuration For G30 Cal
Stock .30 | 4500/2800PSI Regulator
Flex Reg .30 | 4500/2100 to 3100PSIComes with a dedicated Spanner Wrench for power adjustment. MADE IN THE USA!
-
Hajimoto Flex Reg on 22ci Aluminum 3K for the G1
Gauntlet Flex Reg with 22ci Tank – Hajimoto Configurations
$205.00Select optionsIntroducing a Hajimoto Productions Exclusive offer!
22ci/360cc/.36L Aluminum Tank 3000PSI
Newly redesigned unit
Now has a high pressure and low pressure burst discs!
Flex 22 Configuration For Generation 1 Gauntlet .177/.22 Cal
Stock .177/.22 | 3000/1100PSI Regulator
Flex 22 .177/.22 |3000/700 to 1500PSIFlex 22 Configuration For Generation 1 Gauntlet .25 Cal
Stock .25 | 3000/1900PSI Regulator
Flex 22 .25 | 3000/1500 to 2300PSIIf you are looking to add an externally adjustable reg to your Gauntlet 2, take a look at swapping your current fixed reg to the Flex reg found HERE
Installs on the Gauntlet with minor tank shroud modifications. (The Gauntlet 2 is shown to give an idea of what modification needs to happen and that is simply a hole drilled in the bottom of the plastic tank shroud for the fill nipple.
A 22ci aluminum 3000PSI cylinder with externally adjustable Ninja Flex Reg for your Umarex Gauntlet1! The volume of air in these 22ci tanks over the 13ci is mind-blowing!
The diameter of the tank is 54-55mm across so a modification to the forearm is required on a Gauntlet 1. I do offer a tank shroud modification service for Gauntlet 1 owners that can be added to a build or provided as a mail-in service.
The Gauntlet 2 forearm slide right over without any issue. Only one access hole needs to be drilled so the fill port is accessible at the bottom.
Consider picking up our extended foster fill adapter to make coupling and filling a breeze.
The Power Flex Combo allows the user to externally adjust the regulator output pressure on the fly with an adjustment range of 800PSI!
When installing the Flex 22 on the Umarex Gauntlet. Tighten the degassed tank and regulator assembly fully to the rifle, then back it off until the fill port is on the bottom and the gauges are left and right. Now fill the bottle with air and all will tighten up solid. Proper alignment will be achieved before the 360° maximum rotation limit is realized.
Comes with a dedicated Spanner Wrench for power adjustment. MADE IN THE USA!
Because of practical limitations, regulator output will be +/- 50PSI (3.5bar) within the requested output.
-
Burst Disk Two Pack
Regulator Burst Disks 1.8k, 3k, 5k & 7.5k
$9.95Select options- 1.8k burst disk is used as the low-pressure burst disk on 3k and 4,5k tanks
- 3k burst disk is used as the low-pressure burst disk on 3k and 4,5k tanks
- 5k burst disk is used as the high-pressure burst disk on 3k tanks
- 7.5k burst disk is used as the high-pressure burst disk on 4.5k tanks
Actual burst disk finish may be Black, or Bright depending on availability. The Flex Reg Above is an example of 5K and 7.4K Burst Disks.
The Flex Reg Above is an example of 5K and 7.5K Burst Disks.
-
Umarex Gauntlet Regulator Shim Pak
$18.50Select optionsHajimoto Productions Regulator Shim Kit For Umarex Gauntlet
I have put together a very easy and complete stainless steel shim kit so you can adjust your Gauntlets Regulator output. The shims that I have included give you a wide range of adjustability to mix and match different thicknesses to get the regulator to output exactly what you want. The shim kit comes with easy to follow instructions which guide you through the process as to what shims you need to add to typically achieve my recommendations for each Gauntlet Caliber.
The shim kit contains:
- 2 – #5 Shims.
- 1 – #3 Shim.
- 2 – #2 Shims.
(Two #2’s = One #4 | Two #5’s = One #10 | One #5 + One #3 = One #8, and so on)
To take a stock G1 .177/.22 from the stock 1100-1050PSI to my recommended 1350-1400PSI you would add two (2) #5 shims (10).
To take a stock G1 .25 from the stock 1900-1950PSI to my recommended 2100-2200PSI you would add one (1) #3 shim (3).
The included two #2 shims are for minor adjustments if you have a finicky regulator.DETAILED LESSON/EXAMPLE:
Let’s say your .22 Gauntlets regulator only puts out 1300PSI after installing the two #5’s when it should be 1350 to 1400PSI, you would add one #2 for a total of 12 to help get it there. If after the addition of the one #2, you’re still 50psi short so you would pull out the #2 and use the #3 for a total of 13.Always use a regulator output tester to confirm the output pressure of your regulator. It is the only safe and sure way to properly adjust the pressure of your regulator.
You have to fill and purge so the Belleville washers settle into the new preload. Be sure to slow fill your bottle the first time only to 500PSI and then purge it, fill slowly a second time to 1000, and then purge fill the final time slowly and watch to be sure the reg has settled and does not exceed your target pressure. If it does exceed your target pressure, stop filling, purge and shim less.
If you rapid fill, there is a good chance you will pop your burst disc.
-
Ninja Regulator Rebuild Kit Part #NINJARBK
$21.95Select optionsNinja Paintball Tank Regulator Replacement Part #NINJARBK – Rebuild Kit for Ninja NON Pro Regulators.
User selectable included burst disc rating (1.8K, 3K, 5K or 7.5K)
-
Oil Water Separator Cartiridge
$30.00Select optionsReplacement / Additional Filter element. This cartridge is for the PCP Air Compressor Filter 4500psi Oil Water Separator we offer. The cartridge has molecular sieve, activated carbon, felt absorbing pads, and dividers installed and ready to go.
-
Air Venturi Avenger Bottle Conversion Barrel Band
Avenger Bottle Conversion – Barrel Band
$35.00Select optionsAvailable in two sizes:
- Small 59-61mm Diameter CF Tank (Typically fits 0.35L (350cc), 0.36L (360cc), 0.42L (420cc), 0.45L (450cc), 0.50L (500cc), & 0.70L (700cc) cylinders)
- Large 62-63mm Diameter CF Tank (Typically fits: 0.38L (380cc), 0.48L (480cc) & 0.58L (580cc) Cylinders)
** YOU MUST MEASURE YOUR CYLINDER TO BE SURE. THE ABOVE ARE TYPICAL SIZES YOURS MAY VARY **
The barrel band is designed by Hajimoto Productions and made from ABS and Carbon Fiber for a strong and lightweight design. The barrel band is designed to live at the end of the cylinder as shown and has a section of Picatinny rail on the bottom to allow for the attacking of a bipod, flashlight, camera, or laser pointer. The Picatinny rail is not designed to support the entire air rifle in a clamp or tripod used in standing rests.
This Barrel band is specifically designed for an Avenger that has the Doux bottle conversation kit installed and a 60.5mm to 63mm diameter cylinder.
-
Sale!
Custom length 47″ Fill Hose
Huben Power – High Pressure Fill Whip
$80.00Original price was: $80.00.$49.00Current price is: $49.00.This is a high quality heavy duty high pressure fill whip that Hajimoto Productions had made to 47″, which provides a more reasonable amount of slack and distance when using a portable compressor or fill tanks than other whips on the market.
- Heavy Duty 4500 PSI Assembly.
- Rugged and durable material wrapping.
- Replaceable/Serviceable Stainless Steel threaded high pressure fittings.
- Fits the typical 8mm fill nipple on PCPs and Paintball equipment.
- Available in two configurations: Female on both ends or Male on one Female on the other.
-
Sale!
User adjustable M18 regulator
Huben Power Black Hawk Pro
$150.00Original price was: $150.00.$130.00Current price is: $130.00.The Huben Power Black Hawk Pro is a very stable, high flow M18 threaded adjustable regulator that allows the user to adjust the output pressure to whatever is required for the application. The quality of materials and craftsmanship is top tier. We tested these regulators here at Hajimoto Productions and the standard deviation was so low it was incredible.
FEATURES
- Rotational bonnet allows for exact thread indexing/clocking of the regulator to the PCP.
- Stream line and slim structural design
- Thread: Bottle = M18*1.5 and PCP = G1/2-14
- Max up to 4500psi high pressure gauge input.
- Regulating output pressure range 500psi~3600psi
- Comes with standard 8mm quick disconnect male foster fitting adapter for filling.
- Dust caps may be green or black randomly.
- The regulator has a high air flow rate, is light weight, easily operational, re-buildable, designed for use with HPA/CO2.
-
Sale!
Flex reg and 22.5ci/370cc/.37L CE Certified CF Tank
Power Flex Combo 22.5ci Carbon Fiber 4500PSI
$375.00Original price was: $375.00.$330.00Current price is: $330.00.Introducing a Hajimoto Productions Exclusive offer!
22.5ci/370cc/.37L CE Certified CF Tank
Newly redesigned unit
Now has a high pressure and low pressure burst discs!
Installs on the Gauntlet 2 with minor tank shroud modifications, forearm slides right over the carbon fiber cylinder. Installation video at the bottom of the page.
The CF Tank is CE Certified and made to ISO 11119-3 standard. They have seamless aluminum alloy 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. This included a 22.5ci carbon fiber 4500PSI cylinder with externally adjustable Ninja Flex Reg for your custom build including the Umarex Gauntlet 1 or Gauntlet 2! The massive volume of air in these 22.5ci tanks is mind-blowing!
The diameter of the tank is 54-55mm across so a modification to the forearm is required on a Gauntlet 1. I do offer a tank shroud modification service for Gauntlet 1 owners that can be added to a build or provided as a mail-in service.
Please be careful if you have accessories on any of the M-Lok openings as the screws or MLok fasteners may protrude into the tank area and scratch the tank when the shroud is slid forward or back. We recommend that if you have any MLok accessories installed, you remove them when sliding the shroud on or off. We also recommend covering the brass inserts in the tank shroud with cloth tape to protect your carbon fiber finish.
The Gauntlet 2 forearm slides right over without any issue. Only one access hole needs to be drilled so the fill port is accessible at the bottom. See photo below
Consider picking up our extended foster fill adapter to make coupling and filling a breeze.
The Power Flex Combo allows the user to externally adjust the regulator output pressure on the fly with an adjustment range of 800PSI!
When installing the Flex regulator on the Umarex Gauntlet. Tighten the degassed tank and regulator assembly fully to the rifle, then back it off until the fill port is on the bottom and the gauges are left and right. Now fill the bottle with air and all will tighten up solid. Proper alignment will be achieved before the 360° maximum rotation limit is realized.
Comes with a dedicated Spanner Wrench for power adjustment. MADE IN THE USA!
Because of practical limitations, regulator output will be +/- 75PSI to the requested output.
-
Sale!
0.7L/700cc CE Certified CF Tank
0.70L Carbon Fiber Tank 4500PSI
$390.00Original price was: $390.00.$280.00Current price is: $280.00.0.7L/700cc CE Certified CF Tank
Perfect fit for your custom build.
M18x1.5 Threaded
If you plan to use this bottle with a Gauntlet, you must remove and leave removed, the tank shroud. This bottle cannot use the flex reg as it is threaded M18.
Consider our barrel bands for the 500cc and 700cc bottles on the Gauntlet found HERE
-
Sale!
M8, M10, and 1/8″ Threaded Digital Gauge
28mm Digital Pressure Gauge
$60.00Original price was: $60.00.$49.00Current price is: $49.00.- 28MM Diameter
- M8, M10, or 1/8″BSP and 1/8″ NPT Threaded versions available
- Display in PSI
- Auto Shut off in 30 secs
- Digital Display 1% Accuracy
- Black Rubber Protective Sleeve
- Working pressure 0-4500psi
- Weight 32g
- Gauge body is made from high-grade brass
-
Ninja Paintball X Reg Rebuild Kit #NINJARBKX
$24.95 – $30.00Select optionsNinja Paintball Tank Regulator Replacement Part #X_REG_RBLDKT – This Rebuild Kit for Ninja X Regulators ONLY.
Like the one below:Other variants are for the Gauntlet 2 in .22 caliber, .25 caliber, and .30 caliber. Be sure to select the proper kit type. User selectable included burst disc rating (1.8K, 3K, 5K or 7.5K)
There is a Flex Reg option but it requires photos so we can be sure what variant you have.
-
Sale!
8mm Threaded 6000psi mini gauge
24MM Mini Gauge 6K
$45.00Original price was: $45.00.$24.00Current price is: $24.00.Small 8mm threaded 6000psi PCP gauge.
Fits Avenger PCP
-
Sale!
HP M18 Reg and 700cc/.7L CE Certified CF Tank
Power 700 Combo
$460.00Original price was: $460.00.$419.00Current price is: $419.00.The Power 700 Combo is a 4500PSI Ninja High-Pressure M18 reg mounted on a 0.7L/700cc Carbon Fiber 4500PSI Cylinder.
The High-Pressure reg paired with the 700cc cylinder means shots galore!
Please note that this combo will not fit a Gauntlet or Gauntlet 2 as the tank diameter is larger than the rifle’s tank shroud will allow. This combo is intended for builds that do away with the tank shroud or to be used on other PCP’s that allow for a typical paintball regulator installation. Use the Notes if you are looking for a lower PSI than 2800PSI as we can build the reg to ANY PSI 3100PSI and lower.
Consider adding our Barrel Band made for the Power 700 Combo!
Because of practical limitations, regulator output will be +/- 75PSI (3.5bar) within the requested output.
-
Ninja X Reg Custom Output Regulator up to 3100psi
Ninja High Pressure 5/8″-18UNF Custom Output Regulator
$144.95Select options5/8″-18UNF thread can be used on 3000PSI bottle as well. This regulator is built with the ball/pin and spring removed so hot swapping will not be able to happen.
We do include the ball/pin and spring should you happen to have a thin pin depression system capable of actually opening the valve. The only function of this pin/ball is to allow the tank to retain air if it is off of the PCP. This is a paintball thing and should not be used in in HPA.
You should never try to unscrew a high-pressure output paintball-style regulator while it is under pressure. You will destroy the threads as they are not designed to be threaded on and off under load. Degas and then remove the regulator and bottle. Read more in the following article https://hajimotoproductions.com/index.php/2024/11/11/regulator-thread-damage/
This is a direct replacement for the regulator found on the Gauntlets G1, G2 and G30 Caliber
Take advantage of a quality regulator for your high pressure application. MADE IN THE USA! Ninja HP regulator output pressures in increments of 100PSI. Simply select your desired output pressure from 1100PSI TO 3100PSI All custom built pressure units will have a +/- 50 psi tolerance.
-
Microbore 4500PSI Extension
Ninja Microbore Fill Whip
$59.95 – $69.95Select options- 30% Lighter and Smaller than standard HPA hoses
- Extremely flexible 30 or 46 inch hose
- 4500 PSI working pressure
- Works with any HPA or CO2 system
- Made in USA
-
Sale!
Huben Power Adjustable reg on a 300cc/.30L CF Tank
Huben Power on 300cc Carbon Fiber Bottle
$285.00 – $295.00Select optionsDirect replacement with no modifications required for the Umarex Gauntlet 2/G30/G30SL other than the fill nipple access hole that is discussed in the video below!
19ci/300cc/.30L 4500 PSI Carbon Fiber Bottle in two finishes.
Hajimoto is bringing sexy back! Doesn’t that carbon fiber look awesome on there!
FEATURES
- Rotational bonnet allows for exact thread indexing/clocking of the regulator to the PCP.
- Stream line and slim structural design
- Thread: Bottle = M18*1.5 and PCP = G1/2-14
- Max up to 4500psi high pressure gauge input.
- Regulating output pressure range 500psi~3600psi
- Comes with standard 8mm quick disconnect male foster fitting adapter for filling.
- Dust caps may be green or black randomly.
- Tank optional finish gloss or matt.
- The regulator has a high air flow rate, is light weight, easily operational, re-buildable, designed for use with HPA/CO2.
Includes the Huben Power Black Hawk Pro regulator.
The CF Tank is CE Certified made to ISO 11119-3 standard. They have seamless aluminum alloy 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. This 4500 PSI carbon fiber bottle is 19ci and is absolutely gorgeous on the Gauntlet. -
NEW MODEL
Pro V3 for 3K and 4.5K Cylinders
Ninja Pro V3 Regulator 5/8″ Thread
$146.00Select optionsThe Hajimoto Ninja Paintball Pro V3 SHP in 5/8”-18UNF Thread with Stainless Steel Cap Threads
Ninja's Pro V3 SHP with rotional bonnet. A perfect replacement for the regulator found on the on the Gauntlet 2. A complete regulator rebuild kit is included! MADE IN THE USA! Ninja regulator output pressures in increments of 100PSI. Simply select your desired output pressure. Output ranges from 1100PSI to 2400PSI. All custom built pressure units will have a +/- 50 psi tolerance. Dont confuse the this regulator with the lower pressure SLP versions out there, there is a difference.
-
500cc CF Tank with Adjustable Reg
Flex Reg RTI Version & Tank
$310.00 – $350.00Select optionsFlex Reg designed and configured specifically for RTI PCP’S such as Prophet, Priest, & Priest 2
This Flex Reg comes paired with a brand-new Carbon fiber 4500PSI tank. The regulator is externally adjustable and has an effective adjustable range of 900PSI (62bar).Using the slider you select what the maximum output will be and because the regulator has the ability to adjust, you can reduce that maximum output pressure down as much as 900PSI (62bar). You can of course set the pressure anywhere along that 900PSI (62bar) range to suit your tuning requirements. The regulator will not have a pin or ball seal in the bonnet. The tank cannot be removed while under pressure and must be degassed.
Because of practical limitations, regulator max output will be +/- 50PSI (3.5bar) within the requested maximum output.
Comes with a spanner wrench for adjusting the output on the fly.
** This regulator is 5/8″-18UNF threaded and will not fit M18 threaded bottles. This configured Reg is not sold separately.
-
NEW MODEL
PRO V3 Reg on a 22.5ci/370cc/.37L CE Certified CF Tank
Ninja Pro V3 Reg on 22.5ci Carbon Fiber Bottle
$294.00Select optionsALL NEW!
Direct replacement with no modifications required for the Umarex Gauntlet 2 and Gauntlet 30 Cal!
22.5ci/370cc/.37L CE Certified CF Tank
Shaves off 1/2 a pound of weight compared to the 4500psi stock aluminum tank.
A complete regulator rebuild kit is included!
Includes the New Hajimoto Pro V3 regulator with Stainless Steel rotational bonnet.
Say goodbye to gauges and foster nipples not lining up with the openings in the stock.The CF Tank is CE Certified made to ISO 11119-3 standard. They have seamless aluminum alloy 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. This 4500 PSI carbon fiber bottle is 22.5ci and is absolutely gorgeous on the Gauntlet series of PCP.
The Gauntlet 1 will need to have its tank shroud inside diameter increased slightly to allow the foregrip/tank cover to side over this carbon fiber tank or simply remove the tank shroud.
Operating Pressure Recommendations
Gauntlet 1:
.177/.22 Stock operating pressure 1100PSI Max Recommended pressure is 1400PSI.
.25 Caliber Stock operating pressure 1900PSI Max Recommended pressure is 2300PSI.
Gauntlet 2:
.22 Stock operating pressure 1900PSI Max Recommended pressure is 2150PSI.
.25 Caliber Stock operating pressure 2100PSI Max Recommended pressure is 2400PSI.NINJA REGULATORS ARE MADE IN THE USA!
-
Flex Reg on 13ci Aluminum 3K
Gauntlet Flex Reg with 13ci Tank – Hajimoto Configurations
$179.00Select optionsIntroducing a Hajimoto Productions Exclusive offer!
13ci/213cc/.21L Aluminum Tank 3000PSI
Newly redesigned unit
Now has a high pressure and low pressure burst discs!
Flex 13 Configuration For Generation 1 Gauntlet .177/.22 Cal
Stock .177/.22 | 3000/1100PSI Regulator
Flex 22 .177/.22 |3000/700 to 1500PSIFlex 22 Configuration For Generation 1 Gauntlet .25 Cal
Stock .25 | 3000/1900PSI Regulator
Flex 22 .25 | 3000/1600 to 2400PSIInstalls on the Gauntlet with minor tank shroud modifications.
A 13ci aluminum 3000PSI cylinder with externally adjustable Ninja Flex Reg with typical G1/2-14 threads connects to your Umarex Gauntlet 1 or Gauntlet 2 without any modifications!
The diameter of the tank is 54-55mm across so a modification to the forearm is required on a Gauntlet 1. I do offer a tank shroud modification service for Gauntlet 1 owners that can be added to a build or provided as a mail-in service.
The Gauntlet 2 forearm slide right over without any issue. Only one access hole needs to be drilled so the fill port is accessible at the bottom.
Consider picking up our extended foster fill adapter to make coupling and filling a breeze.
The Power Flex Combo allows the user to externally adjust the regulator output pressure on the fly with an adjustment range of 800PSI!
When installing the Flex 13 on the Umarex Gauntlet. Tighten the degassed tank and regulator assembly fully to the rifle, then back it off until the fill port is on the bottom and the gauges are left and right. Now fill the bottle with air and all will tighten up solid. Proper alignment will be achieved before the 360° maximum rotation limit is realized.
Comes with a dedicated Spanner Wrench for power adjustment. MADE IN THE USA!
Because of practical limitations, regulator output will be +/- 50PSI (3.5bar) within the requested output.
-
NEW MODEL
PRO V3 REG WITH 13CI TANK
Ninja 13ci 3000PSI Air Tank with Pro V3 Regulator
$155.00Select optionsIncludes Hajimotos Pro V3 regulator with Stainless Steel Threaded rotional Cap. Say goodbye to gauges and foster nipples not lining up with the stock openings when the is installed tight. A complete regulator rebuild kit is included!
This is an aluminum 13ci bottle that holds 3000PSI including a Pro V3 regulator with custom output pressures in increments of 100PSI. Simply select the desired pressure in the dropdown. Pressure Recommendations For Umarex Gauntlet Generation 1 .177, .22 and .25 Stock Gauntlet Gen1 .177/.22 | 13ci/3000/1100PSI Regulator Gauntlet with STK Installed .177/.22 | 13ci/3000/1400PSI Regulator Stock Gauntlet Gen1 .25 | 13ci/3000/1900PSI Regulator Gauntlet with STK Installed .25 | 13ci/3000/2100 Regulator
-
Sale!
Ninja High Pressure Metric M18 Custom Output with Carbon Fiber Tank
Ninja High Pressure Metric M18 Custom Output with Carbon Fiber Tank
$360.00 – $419.00Select optionsAwesome configurations if you don’t care if the Gauntlet bottle shroud stays off. The 700cc on the G30 is beast mode!!!
Ninja Paintball High Pressure Regulator mounted on a quality 0.37L (370 cc), 0.5L (500cc) or 0.7L (700cc) a 4500PSI rated Carbon Fiber Cylinder.
Please be advised that if you use the 370 cc bottle and want to continue to use your stuck bottle shroud, be sure to remove any MSLOT accessories off the tank shroud before sliding it over your new carbon fiber tank as it will scratch it.
Watch my video below that goes over how to modify the brass inserts so they don’t scratch the tank also.
We build the regulator to any custom output pressure in 100 PSI increments from 1100PSI to 3100PSI
All custom built pressure units will have a +/- 75 psi tolerance.
-
NEW MODEL
PRO V3 ON 22ci 3K Cylinder
Ninja 22ci 3000PSI Air Tank with Pro V3 Regulator
$173.00 – $175.00Select optionsIncludes Ninja’s Pro V3 regulator with Stainless Steel Threaded 36o° rotational Cap.
Say goodbye to gauges and foster nipples not lining up with the openings in the stock.This is an aluminum 22ci bottle that holds 3000PSI including a Pro V3 regulator with custom output pressures in increments of 100PSI. Simply select the desired pressure in the dropdown.
PRESSURE – STOCK AND RECOMMENDED
Stock .177/.22 | 22ci/3000/1100PSI Regulator
Super Tuned .177/.22 (IF STK IS INSTALLED) | 22ci/3000/1400PSI RegulatorStock .25 | 22ci/3000/1900PSI Regulator
Super Tuned .25 (IF STK IS INSTALLED) | 22ci/3000/2100 RegulatorThis setup is for the original Umarex Gauntlet 1 with the Black stock.
A complete regulator rebuild kit is included!
NINJA REGULATORS ARE MADE IN THE USA!
-
Gauntlet Regulator Tester
$65.00Select optionsAssembled and tested by Hajimoto using quality US Parts! Don’t guess what the output of your Gauntlets regulator is, KNOW what it is especially if you are adding shims and need to hit a specific PSI output.
Designed to be used with any Paintball style Regulator that uses the industry-standard G1/2-14 Threads like these shown
-
Sale!
Includes G1, G2, G30, G2SL, & G30SL variants

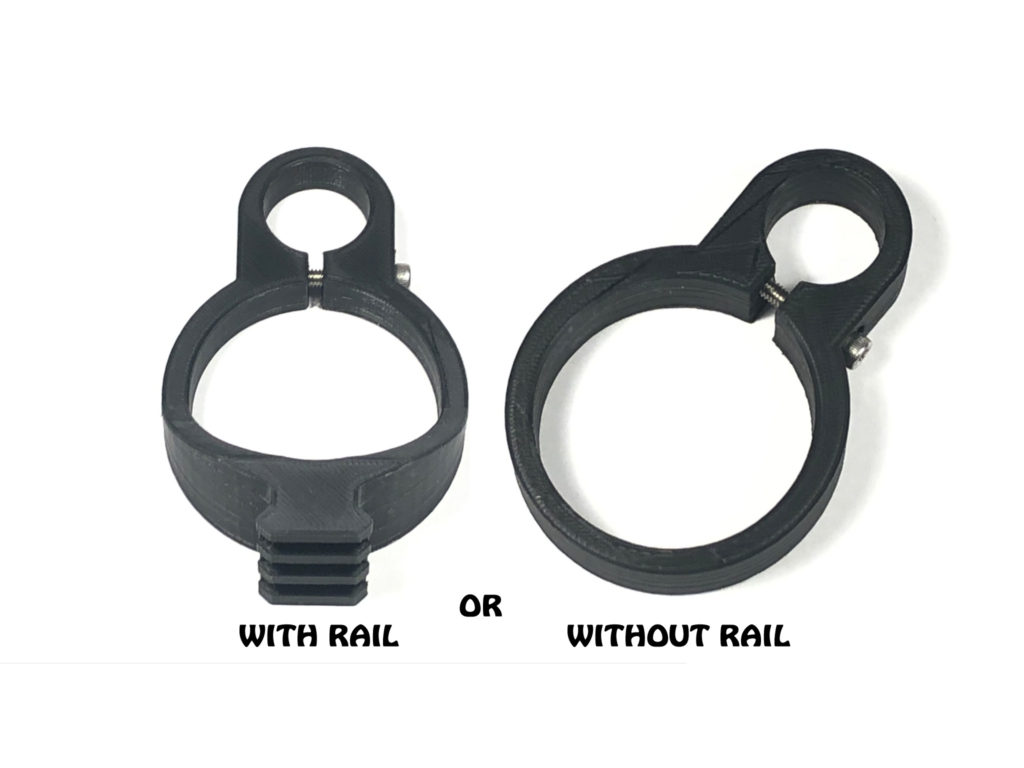

HP Barrel Band For Umarex Gauntlet
Rated 4.67 out of 5$25.00 – $35.00Select options
Top Three – click NEWS for all stories
To see all of my tutorials, modifications, reviews, hunting and pest elimination videos, head over to my YouTube channel. You can get there by clicking on the image to the left or by THIS LINK.
Here on my product site, most products I sell will have the associated video embedded to help you install or better understand the procedure.
About Us
My mission is to share my ideas, products and skill set, with the community in an attempt to foster a creative environment to benefit most.
Through open collaboration, better products and industry-changing trends develop. It is my firm belief that you are witnessing an explosive amount of growth in our industry.
There have been more advances made in the past 5 years than the 15 before that. I am excited about the future and honored to be involved in contributing to the advancement of our sport even if just a little bit.
Follow Us
Please understand Our Business line (413-888-6169) will not process photos or video. Only voice calls or texts are processed. If you call us and there is no answer, please leave a detailed voice message as we always return phone calls that request a callback.
Lastly, if you have images you want to send or share you can use email sales@hajimotoproductions.com or send them to us through WhatsApp to our business number.
All orders must be placed through our website, no orders are taken over the phone.
Our Location
Our Email
Voice calls or Text (No Images)
WhatsApp (Txt,Photo or Video)
Hajimoto Productions is an e-commerce company and does not have public access facilities. All orders must be placed through this website as no orders are taken over the phone. We ship to the US as well as any of the US Possessions and Territories like AL, HI, PR, VI, GU, and MP. We also ship to Canada and the UK.
