Ninja Reg Rebuild Kit
Price range: $22.00 through $23.00
This Kit Contains All Of The Most Consumable Parts in a Ninja X Reg, Ninja ProV2, and Flex Variants
The Small section of the piston is 7.90mm in diameter.
-

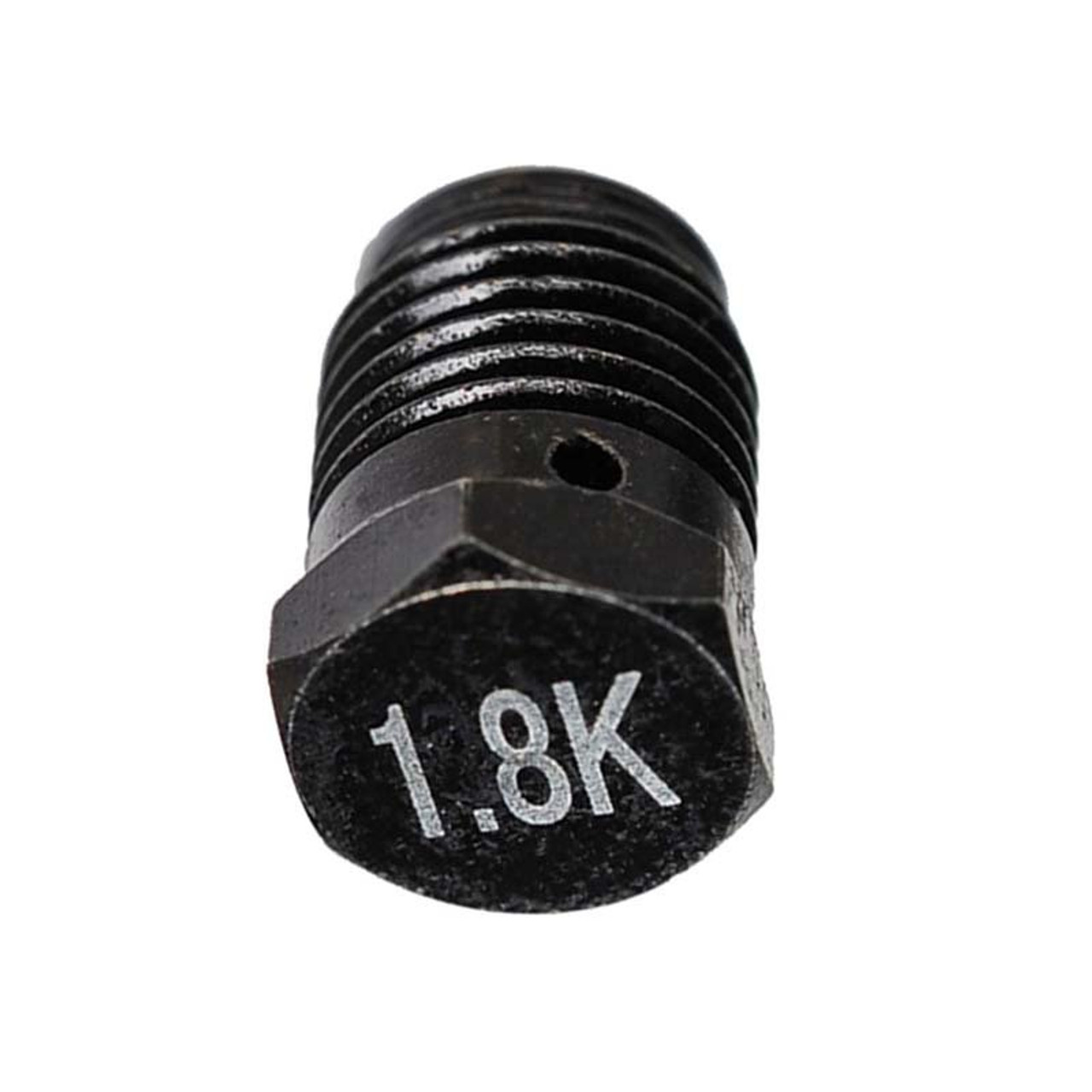

- 1 – User-selectable Burst Disk (1.8k, 3k, 5k, 7.5k
- 2 – Upper Small Piston O-Ring (Small Piston Kit)
- 2 – Upper Large Piston O-Ring (Large Piston Kit)
- 1 – Small Lower Large Piston O-Ring
- 2 – Regulator Bonnet O-Rings
- 1 – Fill port o-ring
- 1 – Piston Lower Ball Seat

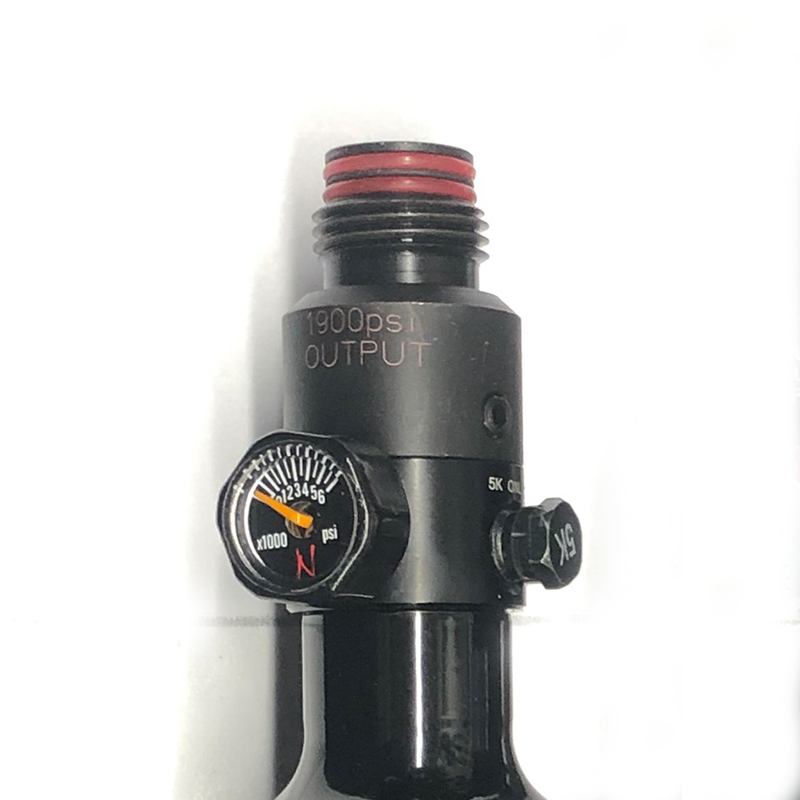

It is strongly recommended that you open your egulator to determine which piston size you have. Below is a photo of both common Ninja Piston sizes side by side.
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 1.5 × 2 × 1 in |
| Regulator Variant | Standard X Reg Large Piston, Standard X Reg Small Piston, Flex Reg |
| Burst Disc Rating | 1.8K, 3K, 5K, 7.5 |
