OrionCam & Video Camera Bundle

OrionCam with Firefly 8SE 90°

OrionCam with Firefly 8SE 90°

$305.00$375.00

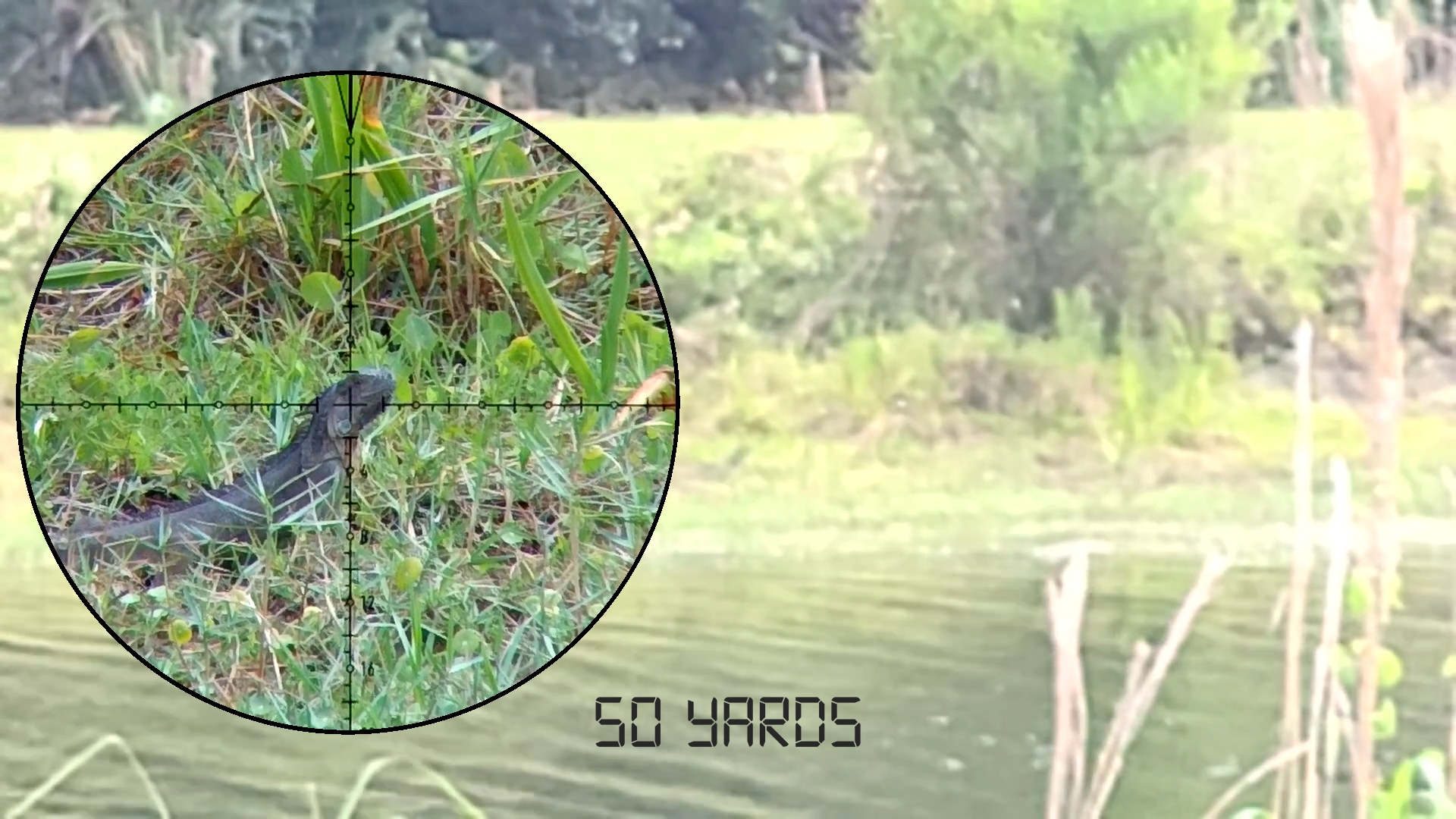

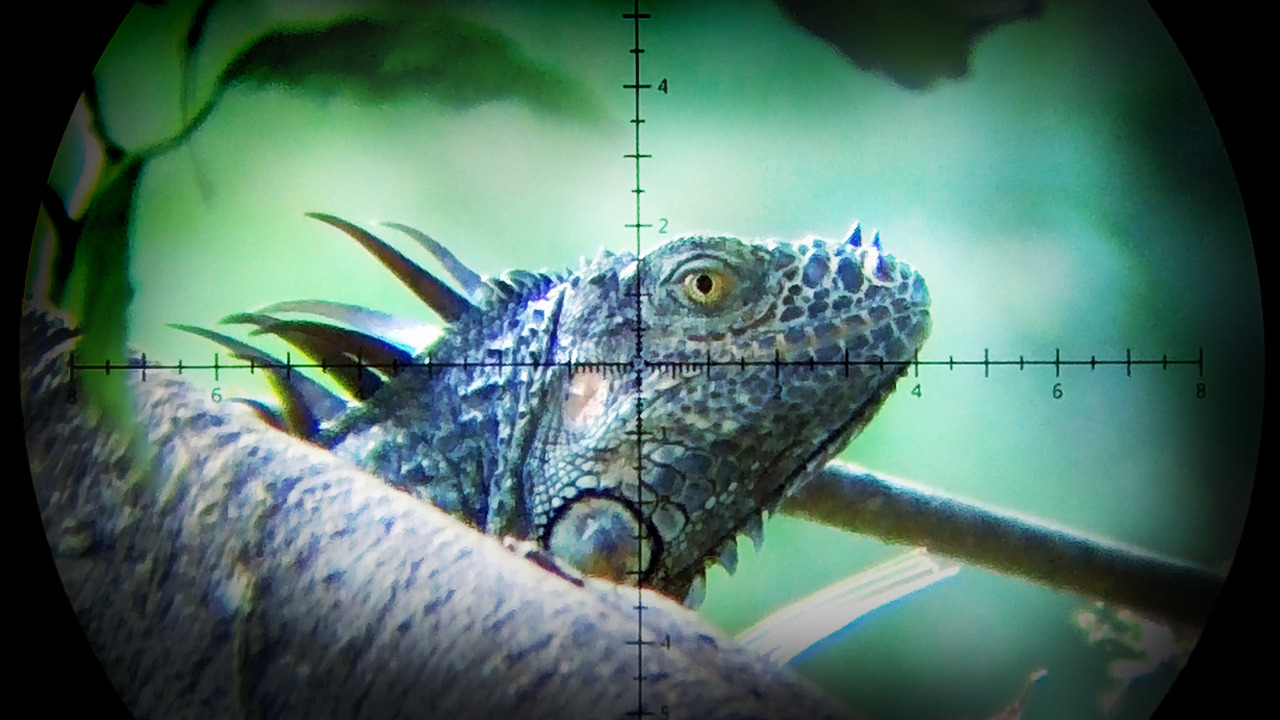

The OrionCam is the result of years of frustration caused by fighting with systems for alignment, image clarity, ease of attachment, and cost. While there are many options on the market for scope camera capture, they all suffered from at least one of these variables. Image clarity is the most important as it communicates what happened in just a fragment of real-time. The clearer the image the more review value the video has. May it be projectile in flight characteristics or hunting shot placement instances, if you can’t see it clearly, you’re forced to do what you have always done until now and that is to rely on your memory.

The Optional Deluxe package includes: 1 Extra Camera Battery, Two Slot Battery Fast Charger, Open back Camera Case door, 32GB Fast Write SD Memory Card, Assembled Modified Camera Case to OrionCam Adapter. Literally everything you need in one package.

Camera Mount means your scope camera latch will be at the top and your Camera will be on the left of your scope or the right of your scope.

  • Image quality is achieved through the use of high-quality German glass as the image splitter.
  • The OrionCam is constructed from ABS and PETG Polymers.
  • Easy to take on and off and guaranteed concentricity with alignment rings designed specifically for your scope.
  • The design supports the use of either the Firefly or GoPro with the proper camera adapter.
  • Scope clamps are available in popular scope tube sizes of 1”, 30mm, 34mm, 35mm, or 40mm, or any custom size up to 46mm.
  • The advantage of the OrionCam is the ability for the system to be custom tailored for your specific optic.

Use the notes area to communicate what scope you have. Please be sure to give the complete scope part number including the tube size EXAMPLE: Hawke Sidewinder 30 SF 6-24×56

 ** See Below Video of an OrionCam being installed **

Clear

Description

Orioncam ScopeCam System includes:

  • 1- OrionCam Scope Cam System
  • 1- Camera Case Adapter to OrionCam
  • 1- Scope Clamp (1", 30mm, 34mm, 35mm or 40mm)
  • 1- Alignment Ring Specifically made for your Scope
  • 1- Flexible Eyecup

Camera Specs:
Brand Name: Hawkeye
Series Name: Firefly
Item Name: 8SE 90° Lens

Version: 90 degrees Distortionless version
Chipset: Ambarella A12S75
Type: Sports Camera

Type of Camera: 4K

Micro SD card Supported: U3 (Note: Low speed SD card will cause unstable recording)
Maximum Size of Micro SD card Supported: 128G (not included)
Wi-Fi +BT 3.0 Remote Control: Yes
LCD Screen Size: 2 inch IPS 320*240 with TP
Lens Diameter: 12mm
Camera Size: 59×41×21mm
Weight: 70g
Battery Capacity (Battery is detachable): 1200mAh, 4.9V
Battery Life: About 1.33 hours (25℃ environment)
Time to Complete Charging: About 3 hours (5V 1A power supply, and power off while charging)
Compressed Format: H.264
Video/photo Format:   *.MP4 / *.JPG
Distortionless Version Diaphrag: F/2.8, 11 glass
Working Voltage: 5V
Power Supply: 1A
Photo Resolution: 16M/14M/12M/8.3M/5M/3M

AV Output Format USB Port: PAL/NTSC
HD Output: Yes

WIFI: Yes

Features:

– Ambarella A12S75 and with SONY IMX117 12 Mega WDR CMOS Sensor.
– 2 inch IPS touch screen, 4K 30fps maximum video resolution, 12MP camera pixels.
– 1200mAh 4.9V high-voltage high-capacity battery, more durable.
– Gyro 2.0 image stabilization support WiFi + BT 3.0 Remote control.

– Support external microphone, bluetooth connection remote control (not included).

English Manual, Click Here

Camera Package Includes:
1 x Camera
1 x Clear Camera Case
1 x Cleaning Cloth
1 x Lens Protection Frame
1 x Lens Protective Cover
1 x Microphone
1 x English User Manual

* Please note that the actual look and finishes of the OrionCam may vary from those in the photos.

Additional information

Weight 24 oz
Dimensions 13.5 × 5 × 3 in
Bundle Option

OrionCam Bundle, Deluxe OrionCam Bundle

Camera Mount

Left, Right

Reviews

There are no reviews yet.

Be the first to review “OrionCam & Video Camera Bundle”

You may also like…

  • Sale!
    Open Door for Firefly 8SE Case
    Original price was: $18.00.Current price is: $12.50.
    Open Door for Firefly 8SE Case
    Original price was: $18.00.Current price is: $12.50.
    Description:
    This skeletonized rear door allows you to use your touch screen without opening the case.

    Direct replacement no modifications required.

    It is recommended that you remove the white silicone gasket on the door so it is easier to close and does not impart too much stress on the hinges or the latch assembly. After all, we are not trying to achieve a waterproof assembly anyway.

    *Firefly camera is not included and is shown for reference.





    Select options
  • OrionCam Clamps
    $30.00

    Extra Clamps For the OrionCam

    OrionCam Clamps
    $30.00

    Additional OrionCam Scope Clamps so you can use your OrionCam on other rifles without removing the clamp from your scope.

    Select options
  • Battery for Firefly 8SE Camera
    $12.00
    Battery for Firefly 8SE Camera
    $12.00
    Description:
    1.This Li-ion Battery is designed for the Hawkeye Firefly 8S 8SE Camera







    Select options
