$40.00
This part is designed and manufactured by DonnyFL
Sold out!

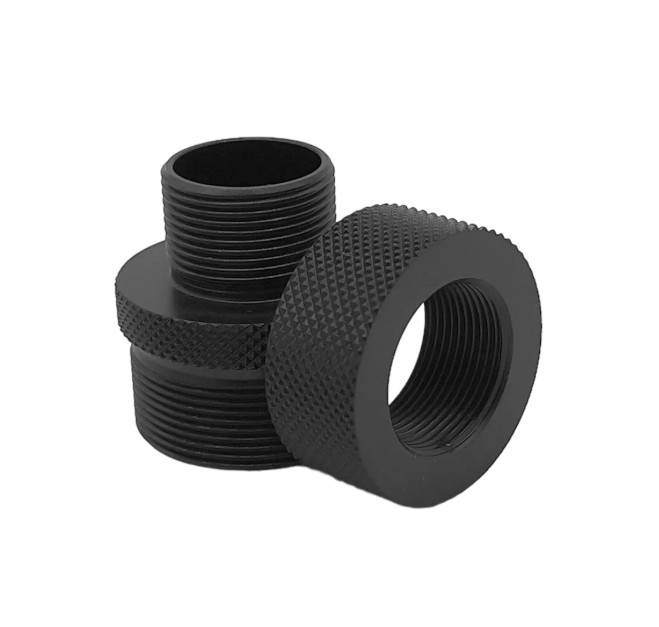

This adapter screws into the OEM shroud. Replaces the original front cap.
Features:
Compatible with the following Hatsan airguns:
Hatsan Blitz
Made by DonnyFL
| Weight | .7 oz |
|---|---|
| Dimensions | 1 × 1 × 2 in |
You must be logged in to post a review.
THIS IS AN AIRGUN ONLY PART
This part is designed and manufactured by DonnyFL
Remember to always order your suppressor one size larger for shrouded barrel PCP’s.
If you have a .22 caliber shrouded barrel PCP, you’ll want to order a .25 caliber suppressor.
The .177/.22 is for shrouded barrel .177 or direct barrel threaded PCP’s in .22.
The .22/.25 is for shrouded barrel .22 or direct barrel threaded PCP’s in .25.
The .25/.30 is for shrouded barrel .25 or direct barrel threaded PCP’s in .30. The exception to this rule is the Gauntlet .30 which is shrouded but because of the unique end cap, marries the barrel and shroud at the end.
The Tanto, Tatsu, FX, or Sumo are not recommended for the Gauntlet .30 caliber because of the relatively small internal volume of these suppressors and the elevated operating pressures of the G30. We recommend the Ronin be used on all of our G30 Builds.
THIS IS AN AIRGUN ONLY PART
This part is designed and manufactured by DonnyFL
Remember it is recommended that you order your suppressor one size larger for shrouded barrel PCP’s.
If you have a .22 caliber shrouded barrel PCP, you’ll want to order a .25 caliber suppressor.
The .177/.22 is for shrouded barrel .177 or direct barrel threaded PCP’s in .22.
The .22/.25 is for shrouded barrel .22 or direct barrel threaded PCP’s in .25.
The .25/.30 is for shrouded barrel .25 or direct barrel threaded PCP’s in .30. The exception to this rule is the Gauntlet .30 which is shrouded but because of the unique end cap, marries the barrel and shroud at the end.
Hajimoto Productions Regulator Shim Kit For Umarex Gauntlet
I have put together a very easy and complete stainless steel shim kit so you can adjust your Gauntlets Regulator output. The shims that I have included give you a wide range of adjustability to mix and match different thicknesses to get the regulator to output exactly what you want. The shim kit comes with easy to follow instructions which guide you through the process as to what shims you need to add to typically achieve my recommendations for each Gauntlet Caliber.
The shim kit contains:
To take a stock G1 .177/.22 from the stock 1100-1050PSI to my recommended 1350-1400PSI you would add two (2) #5 shims (10).
To take a stock G1 .25 from the stock 1900-1950PSI to my recommended 2100-2200PSI you would add one (1) #3 shim (3).
The included two #2 shims are for minor adjustments if you have a finicky regulator.
DETAILED LESSON/EXAMPLE:
Let’s say your .22 Gauntlets regulator only puts out 1300PSI after installing the two #5’s when it should be 1350 to 1400PSI, you would add one #2 for a total of 12 to help get it there. If after the addition of the one #2, you’re still 50psi short so you would pull out the #2 and use the #3 for a total of 13.
Always use a regulator output tester to confirm the output pressure of your regulator. It is the only safe and sure way to properly adjust the pressure of your regulator.
You have to fill and purge so the Belleville washers settle into the new preload. Be sure to slow fill your bottle the first time only to 500PSI and then purge it, fill slowly a second time to 1000, and then purge fill the final time slowly and watch to be sure the reg has settled and does not exceed your target pressure. If it does exceed your target pressure, stop filling, purge and shim less.
If you rapid fill, there is a good chance you will pop your burst disc.
Fits the G1, G2 or G30
Full-fledged 2-stage trigger for the Umarex Gauntlet 1, 2 or G30. This trigger is a direct replacement for the single-stage trigger that ships with the Umarex Gauntlet. This trigger is a straightforward install that will increase the accuracy of your shooting due to a more predictable and consistent breakpoint.
Please see the installation video below for more details.
Super Tune Kit Users
You must use the stock trigger return spring with the two-stage trigger as the trigger spring that comes with the Super Tune Kit is too light to be effective with the two-stage trigger.
Gauntlet 1 and Gauntlet 2
Hajimoto Productions Tuning O-ring kit for the Gauntlet and Gauntlet 2
Now includes my “NO RING” pellet probe seals as HP-1 rather than the typical high wear donut orings.
I have put together the most common o-rings that fail during a tuning session. Most of the stock o-rings for the internals will gouge when the airgun is disassembled, this kit will allow you multiple attempts should any of the o-rings fail. Please note that the .30 caliber uses completely different internal o-rings than all previous Gauntlet Models including the .30 cal exclusive transfer port orings Which will be bagged as TP.
Some of the NO-Ring seals have the leading edge precision ground.
These tapered / precision ground types need to be installed as shown below
(Images are of the .30 caliber NO RING)
You get:
