Description

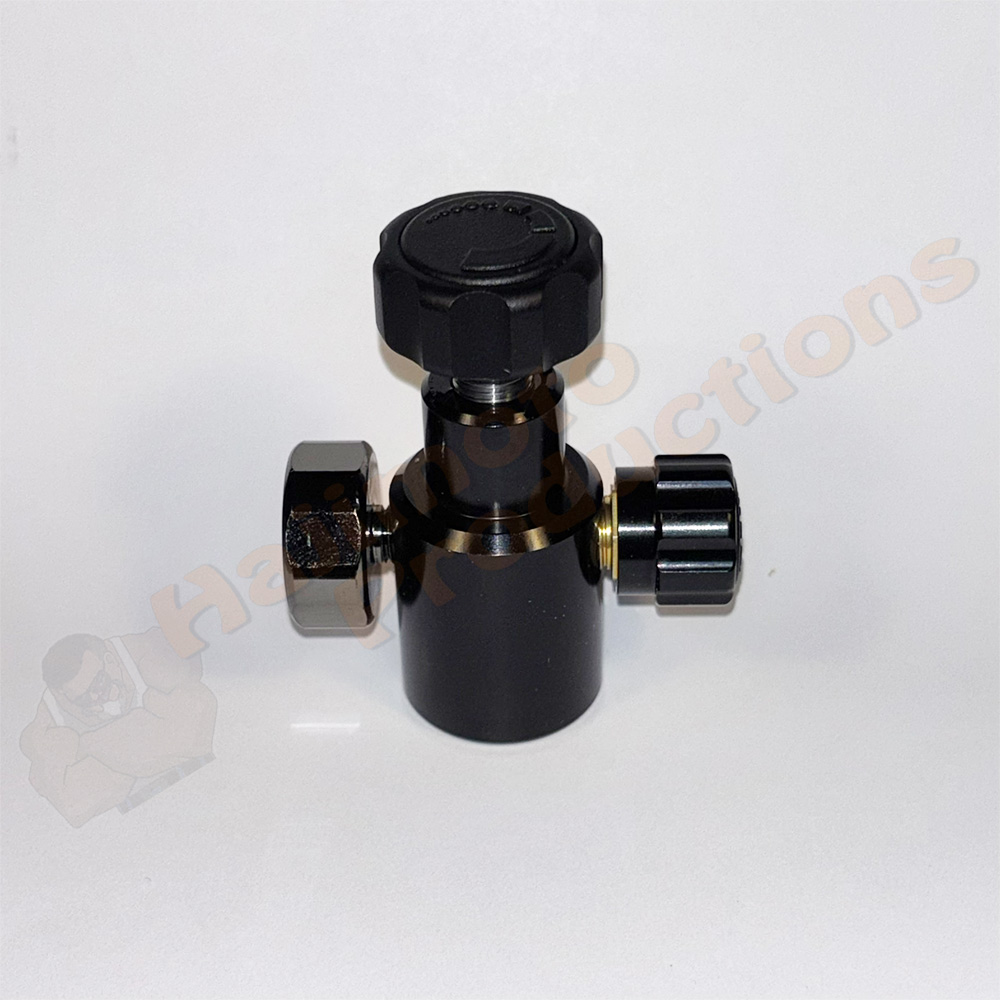

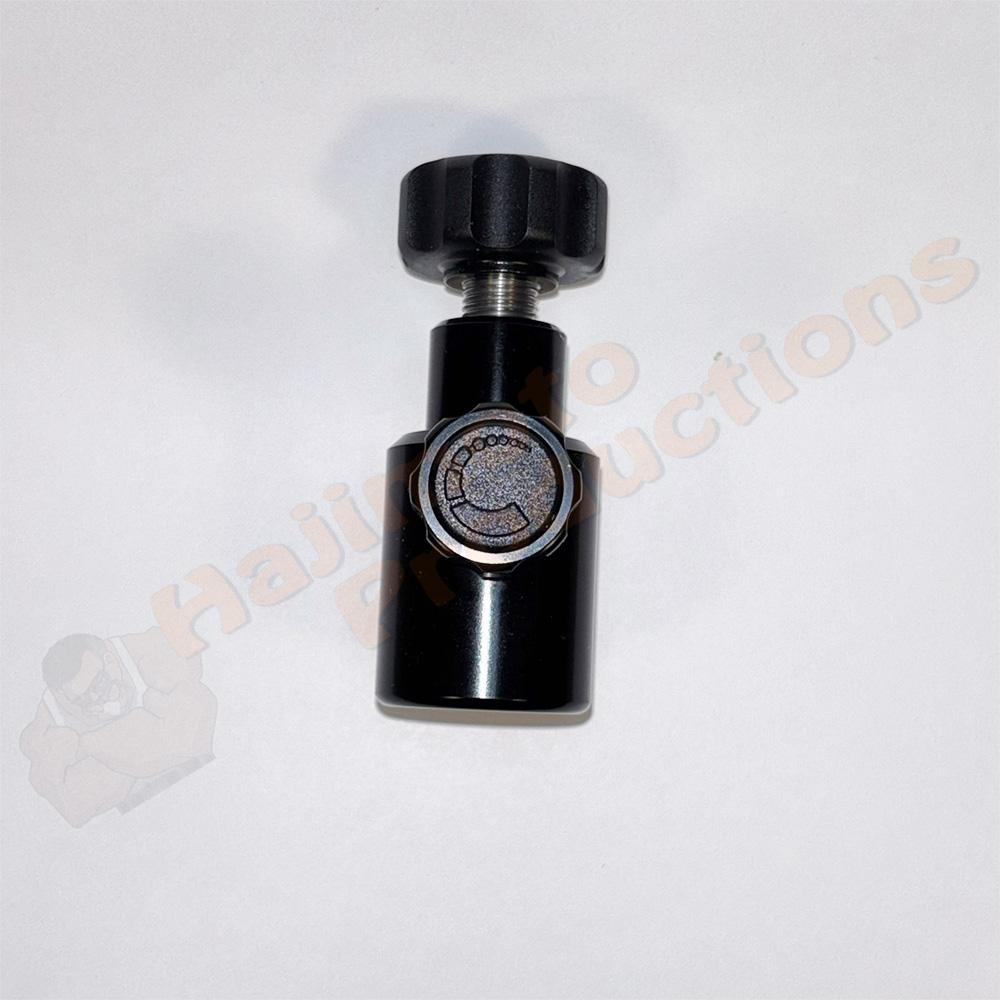

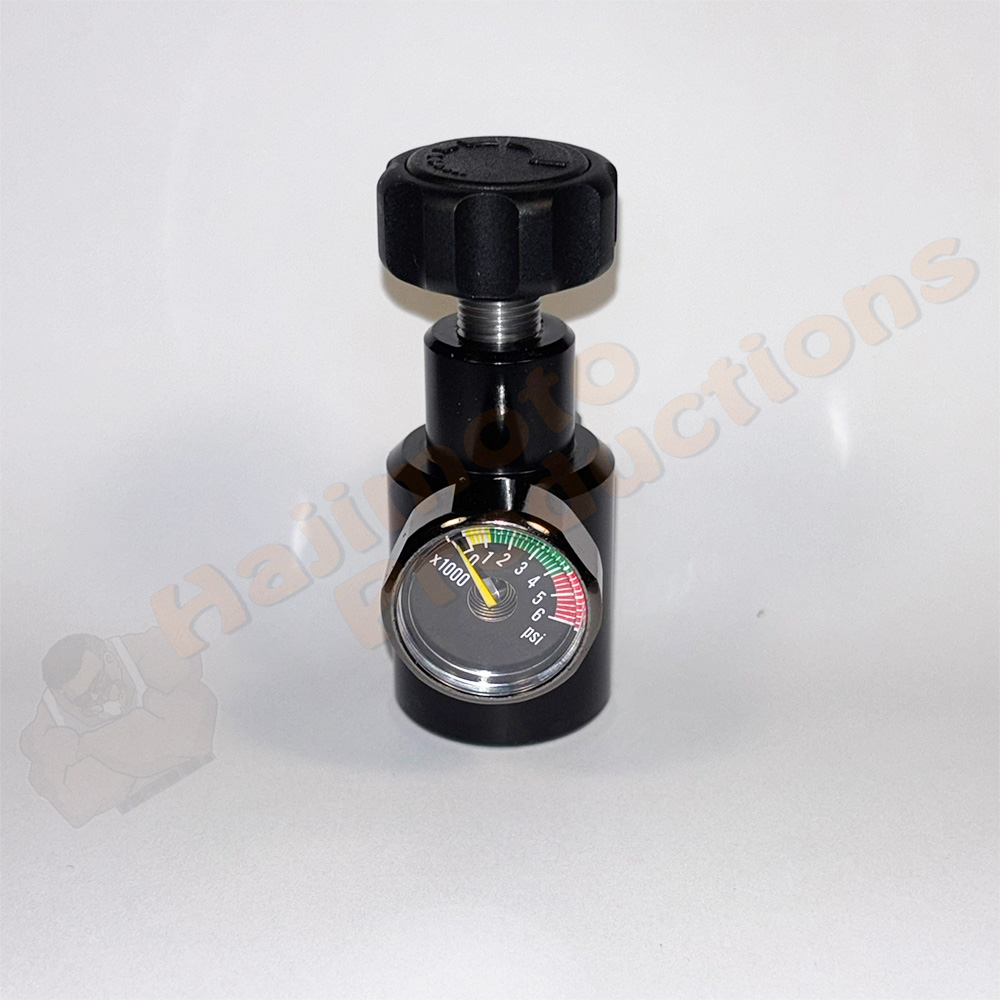

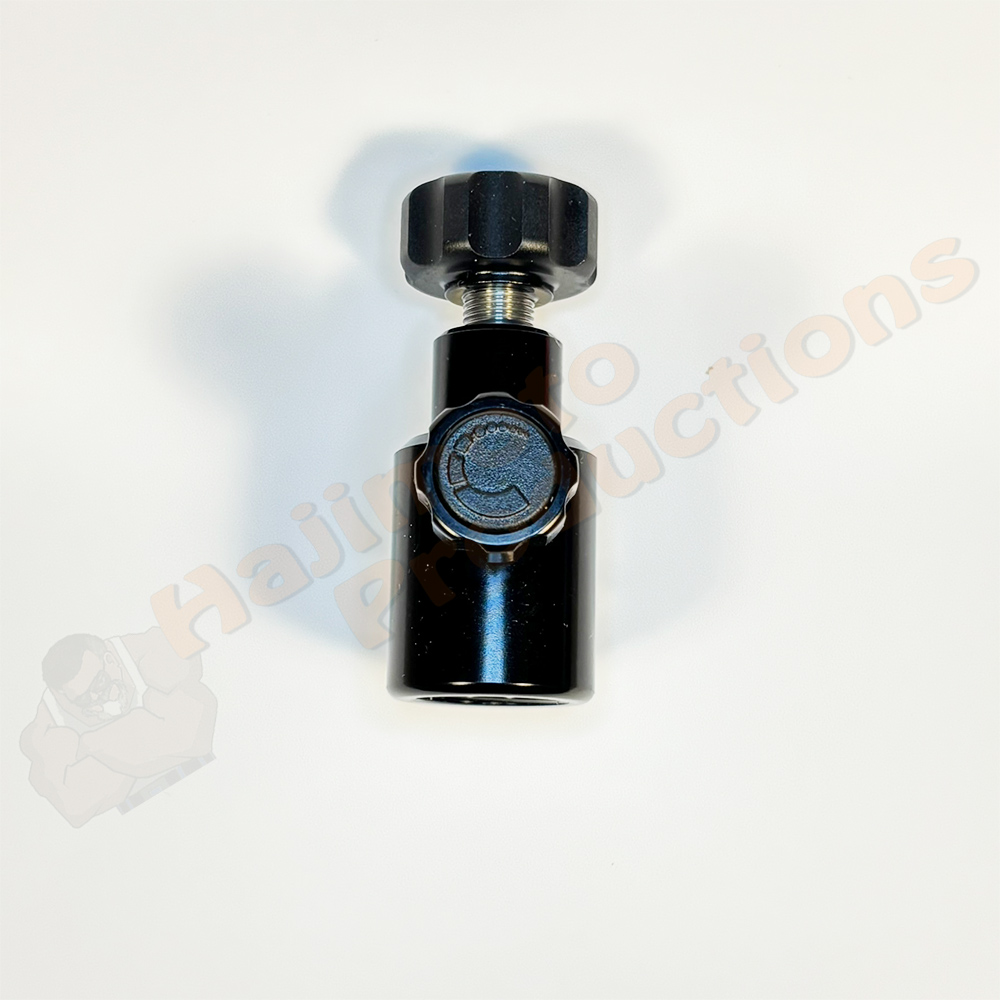

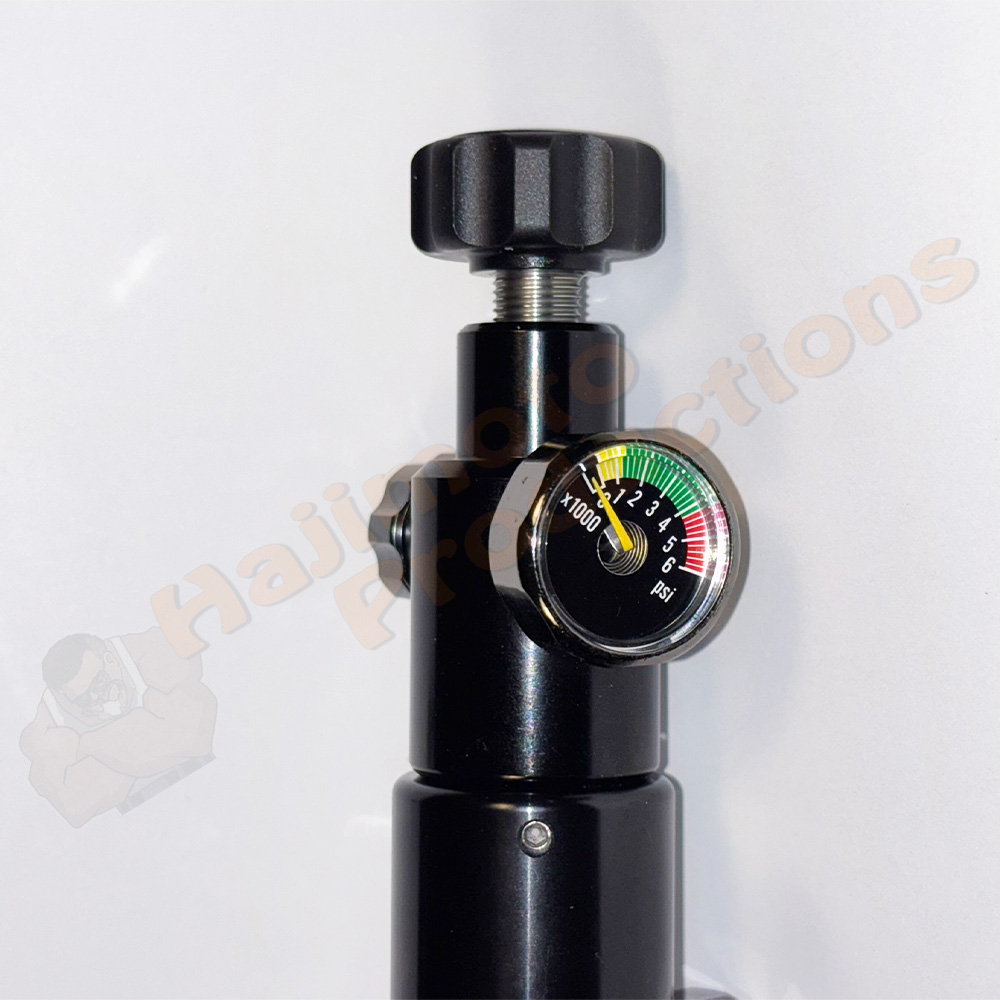

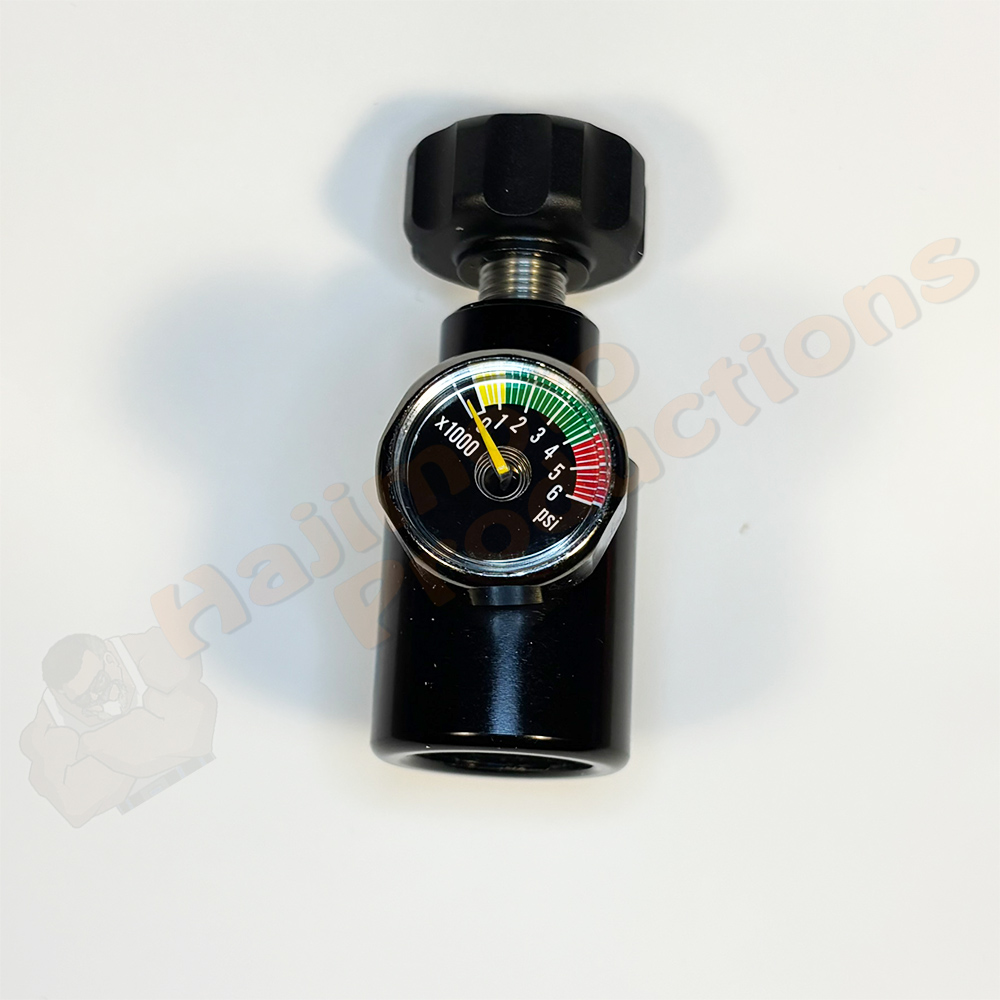

A Hajimoto built and tested regulator tester. Don't guess what the output of your Gauntlets regulator is, KNOW what it is especially if you are adding shims and need to hit a specific PSI output. Quality USA made parts.
$65.00
Assembled and tested by Hajimoto using quality US Parts! Don’t guess what the output of your Gauntlets regulator is, KNOW what it is especially if you are adding shims and need to hit a specific PSI output.
Designed to be used with any Paintball style Regulator that uses the industry-standard G1/2-14 Threads like these shown
1 in stock
1 review for Gauntlet Regulator Tester
You must be logged in to post a review.
Related products
-
$18.50Umarex Gauntlet Regulator Shim Pak
$18.50Select optionsHajimoto Productions Regulator Shim Kit For Umarex Gauntlet
I have put together a very easy and complete stainless steel shim kit so you can adjust your Gauntlets Regulator output. The shims that I have included give you a wide range of adjustability to mix and match different thicknesses to get the regulator to output exactly what you want. The shim kit comes with easy to follow instructions which guide you through the process as to what shims you need to add to typically achieve my recommendations for each Gauntlet Caliber.
The shim kit contains:
- 2 – #5 Shims.
- 1 – #3 Shim.
- 2 – #2 Shims.
(Two #2’s = One #4 | Two #5’s = One #10 | One #5 + One #3 = One #8, and so on)
To take a stock G1 .177/.22 from the stock 1100-1050PSI to my recommended 1350-1400PSI you would add two (2) #5 shims (10).
To take a stock G1 .25 from the stock 1900-1950PSI to my recommended 2100-2200PSI you would add one (1) #3 shim (3).
The included two #2 shims are for minor adjustments if you have a finicky regulator.DETAILED LESSON/EXAMPLE:
Let’s say your .22 Gauntlets regulator only puts out 1300PSI after installing the two #5’s when it should be 1350 to 1400PSI, you would add one #2 for a total of 12 to help get it there. If after the addition of the one #2, you’re still 50psi short so you would pull out the #2 and use the #3 for a total of 13.Always use a regulator output tester to confirm the output pressure of your regulator. It is the only safe and sure way to properly adjust the pressure of your regulator.
You have to fill and purge so the Belleville washers settle into the new preload. Be sure to slow fill your bottle the first time only to 500PSI and then purge it, fill slowly a second time to 1000, and then purge fill the final time slowly and watch to be sure the reg has settled and does not exceed your target pressure. If it does exceed your target pressure, stop filling, purge and shim less.
If you rapid fill, there is a good chance you will pop your burst disc.
-
$47.00Air Stripper, Tension Spring and Baffle Stack
HP Strip Stak Pak for Avenger
$47.00Select optionsUPDATE: The newer avengers have a screw-on barrel shroud and an end cap that is a two-piece unscrewable but the STP still fits and works without an issue. unscrew the shroud rather than the little screw shown in the video and simply unscrew the baffle washer array off the end cap and you are good to go.
Strip Stak Pak for the Avenger
A six piece kit that includes an efficient multiport air stripper that strips and channels air away from the pellet to allow for a more stable and less turbulent pellet launch from the muzzle. The kit also provides baffle chambers to help remove both noise and turbulence in the air stream. The end result is a more laminar air stream which reduces projectile instability and as a secondary benefit, reduces the report of the rifle. This kit is 100% compatible with the stock end cap or the DonnyFL A50 adapter.
Air Stripper comes with o-ring and silicone grease for installation. The installation video for the Umarex Origin Strip Stak Pak is exactly the same so you can follow the installation video below.Replacement Air Stripper 0-ring is 14mm x 1.5mm
-
$130.00Tatsu 1.6 x 4.25 inches
Tatsu 1.6 x 4.25 inches
$130.00Select optionsTHIS IS AN AIRGUN ONLY PART
This part is designed and manufactured by DonnyFL
Remember to always order your suppressor one size larger for shrouded barrel PCP’s.
If you have a .22 caliber shrouded barrel PCP, you’ll want to order a .25 caliber suppressor.
The .177/.22 is for shrouded barrel .177 or direct barrel threaded PCP’s in .22.
The .22/.25 is for shrouded barrel .22 or direct barrel threaded PCP’s in .25.
The .25/.30 is for shrouded barrel .25 or direct barrel threaded PCP’s in .30. The exception to this rule is the Gauntlet .30 is shrouded but because of the unique end cap, marries the barrel and shroud at the end.The Tanto, Tatsu, FX, or Sumo are not recommended for the Gauntlet .30 caliber because of the relatively small internal volume of these suppressors and the elevated operating pressures of the G30. We recommend the Ronin be used on all of our G30 Builds.
Kevin Brotherton –
What regulator can it test?
Ninja / Chinese Both
Hajimoto –
Yes, as shown in the product description, as long as the regulator has industry-standard G1/2-14 threads, the tester is compatible no matter what the country of origin is.
