Power Flex Combo 18.3ci Carbon Fiber 4500PSI

Flex Reg on 18ci/295cc/.29L CE Certified CF Tank
Sold out!

Flex Reg on 18ci/295cc/.29L CE Certified CF Tank

Original price was: $339.00.Current price is: $295.00.

Introducing a Hajimoto Productions Exclusive offering!
18ci/295cc/.29L CE Certified CF Tank

Fits the Gauntlet 2 without any modifications.

The CF Tank is CE Certified made to ISO 11119-3 standard. They have seamless aluminum alloy 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. An 18.3ci carbon fiber 4500PSI cylinder with externally adjustable Ninja Flex Reg for your Umarex Gauntlet! The massive volume of air afforded you is mind-blowing.

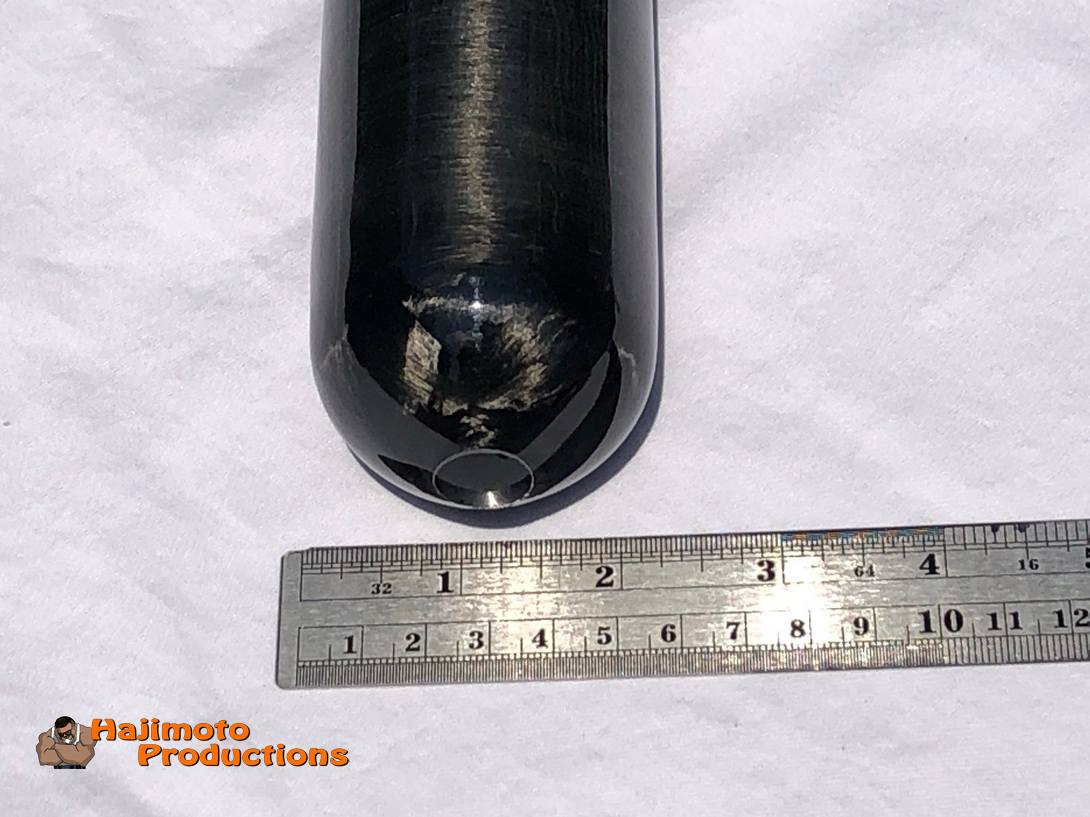

The diameter of the tank is 54-55mm across so a modification to the forearm is required if you desire to continue to use the Gauntlets tank shroud. I do offer a tank shroud modification service for Gauntlet 1 owners that can be added to a build or provided as a mail-in service.

Gauntlet Bottle Shroud Mod

Please see the examples provided in the accompanying photos.

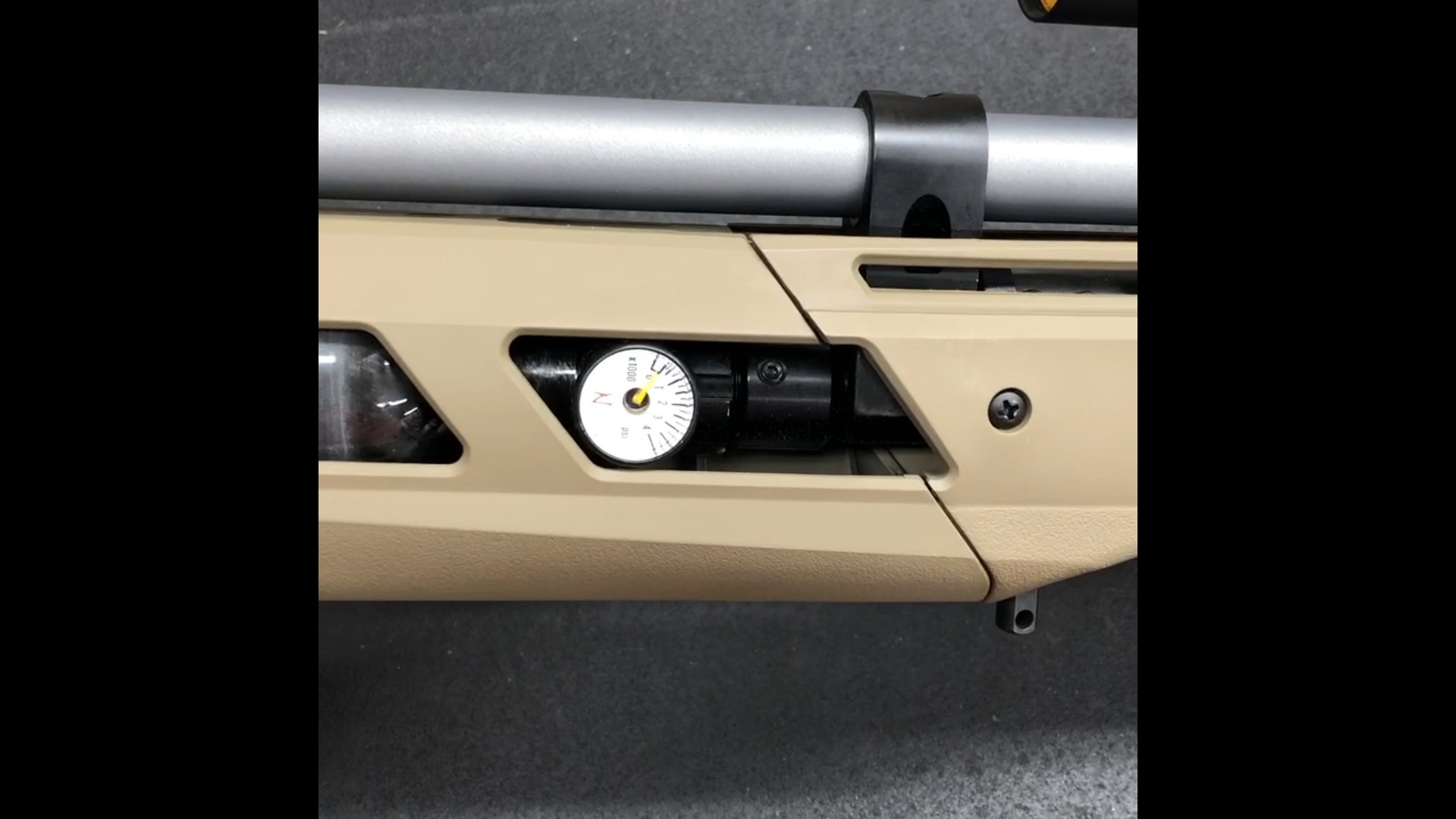

The Gauntlet 2 forearm slides right over without any issue. Only one access hole needs to be drilled so the fill port is accessible at the bottom. Please be careful if you have accessories on any of the MLok openings as the screws or MLok fasteners may scratch the tank when the shroud is slid forward or back.

Consider picking up our extended foster fill adapter to make coupling and filling a breeze.

The Power Flex Combo allows the user to externally adjust the regulator output pressure on the fly with an adjustment range of 800PSI!.

The cylinder’s outside dimension is slightly larger than the stock aluminum tank so my standard HP Barrel Band does not fit. You will need to use the HP Barrel Band CFT version


Regulator is Made in the USA!
The Power Flex Combo is set to either of the two Gauntlet configurations.
Simply select the proper configuration.

Power Flex Combo Configuration For .177/.22 Cal
Flex Reg set to 700 to 1500PSI
Power Flex Combo Configuration For .25 Cal
Flex Reg set to 1600 to 2400PSI
DO NOT USE Power Flex Combo Configuration For .25 CONFIG on .177 or .22
they are not capable of handling the pressures.
Because of practical limitations, regulator output will be +/- 50PSI (3.5bar) within the requested output.
Clear
SKU: HPGNPRFXCBO Categories: , , , , , ,

Description

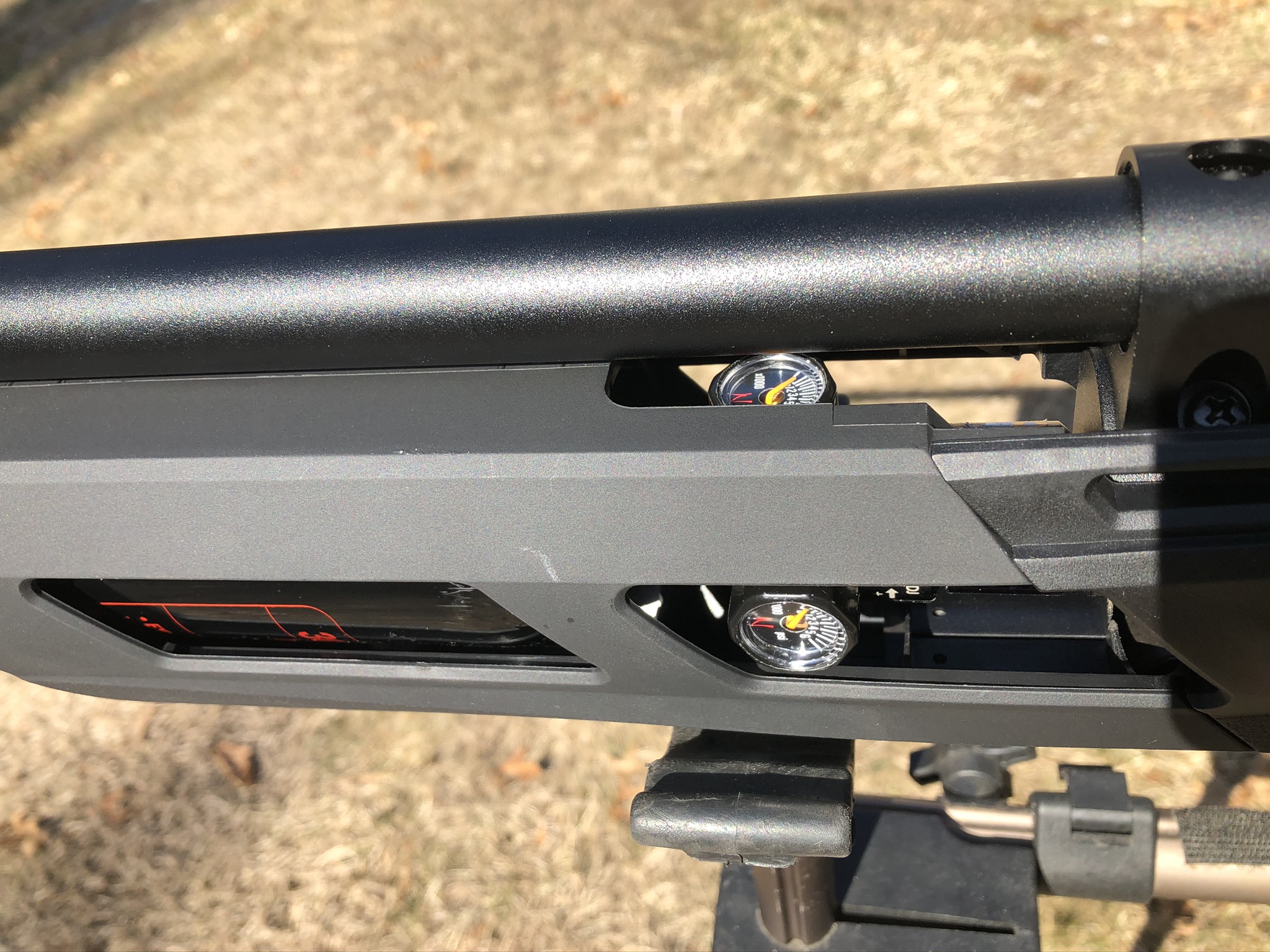

When installing the Flex regulator on the Umarex Gauntlet. Tighten the degassed tank and regulator assembly fully to the rifle, then back it off until the fill port is on the bottom and the gauges are left and right. Now fill the bottle with air and all will tighten up solid. Proper alignment will be achieved before the 360° maximum rotation limit is realized.

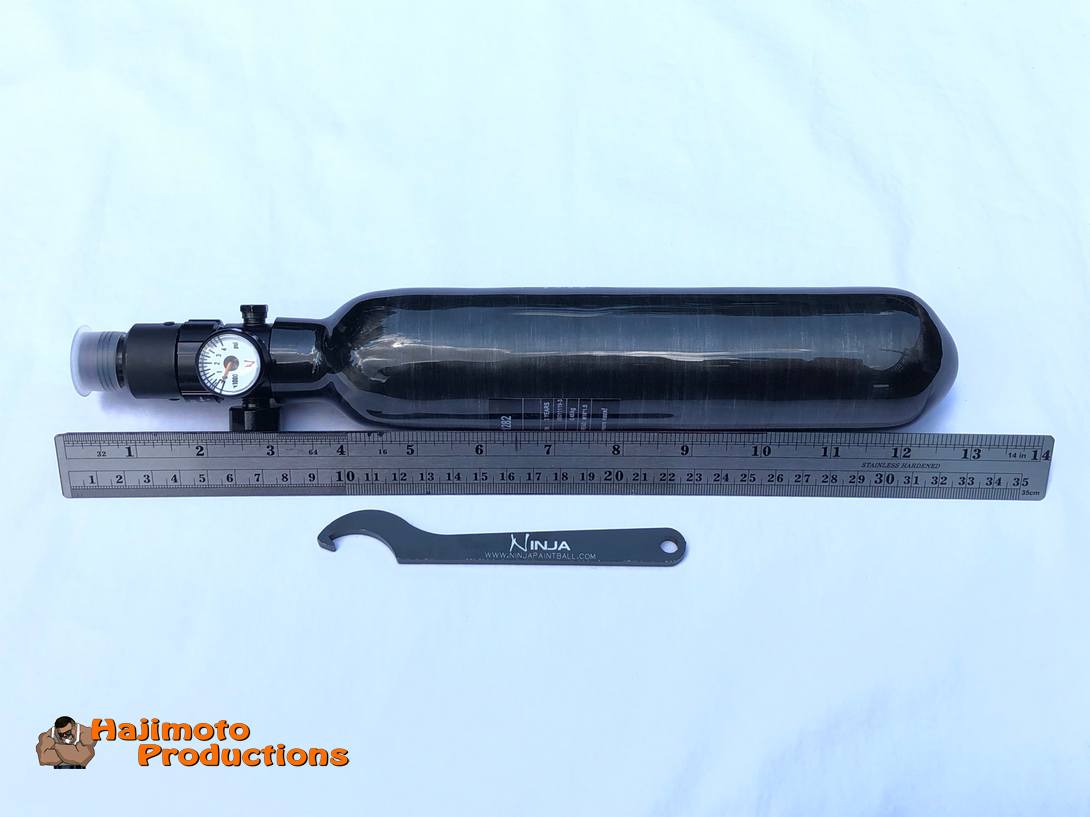

The Power Flex Combo is a 4500PSI Flex reg installed on a 18.3ci Carbon Fiber 4500PSI Cylinder.

The Flex reg allows for the user to adjust regulator output on the fly while the 18ci 4500PSI cylinder means shots galore!

CONFIGURATIONS:
1) – 500~1500 PSI  works well with the .177/.22 Caliber Gauntlet 1
2) – 1400~2400 PSI works well with the .25 Caliber Gauntlet 1 or the .22 Caliber Gauntlet 2.

If the Power Flex is going to be installed on a Gauntlet 1 and the tank shroud is going to be used, the shroud will need to be widened to allow the larger diameter carbon fiber tank to pass through.

The Gauntlet 1 shroud modification is offered as a service if you don't want to mess with it yourself.

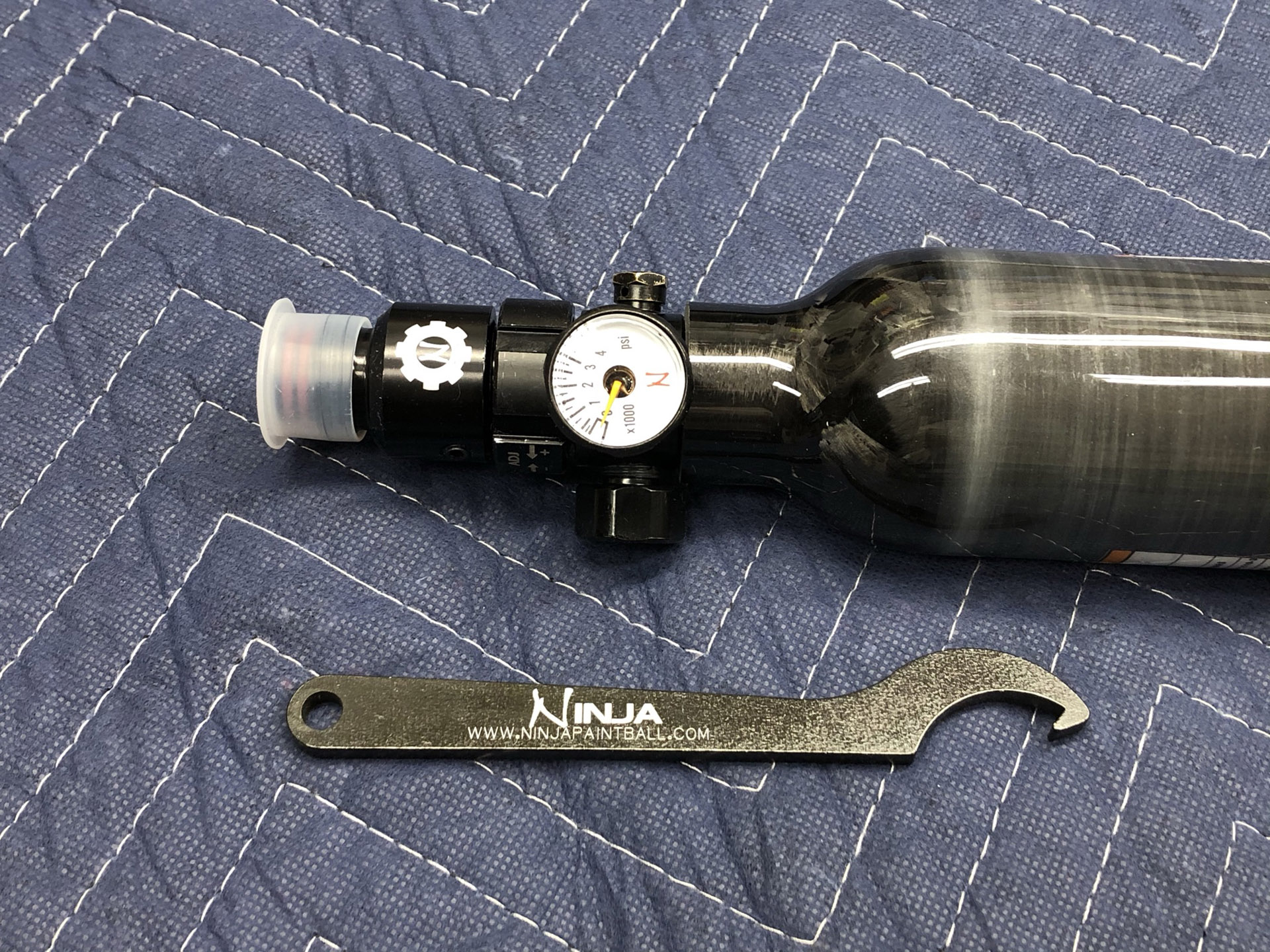

Comes with a dedicated spanner wrench for adjusting the output of the Flex Reg.

WARNING!  Do not install the .25 Caliber Version on the Gauntlet 1 in .177 or .22 as the .25 version's pressure output will exceed the safe maximum operating pressure of the Gauntlet 1 in .177 or .22.

Please note, you need to understand what you are buying and if you are not sure, you need to contact us and we will help you make the right selection for your airgun.

Flex Reg is Manufactured by Ninja Paintball.

Additional information

Weight 25 oz
Dimensions 11 × 2 × 3 in
PRESSURE SETTING

Gauntlet .17/.22 – 500~1500PSI Output, Gauntlet .25 – 1500~2400PSI Output
