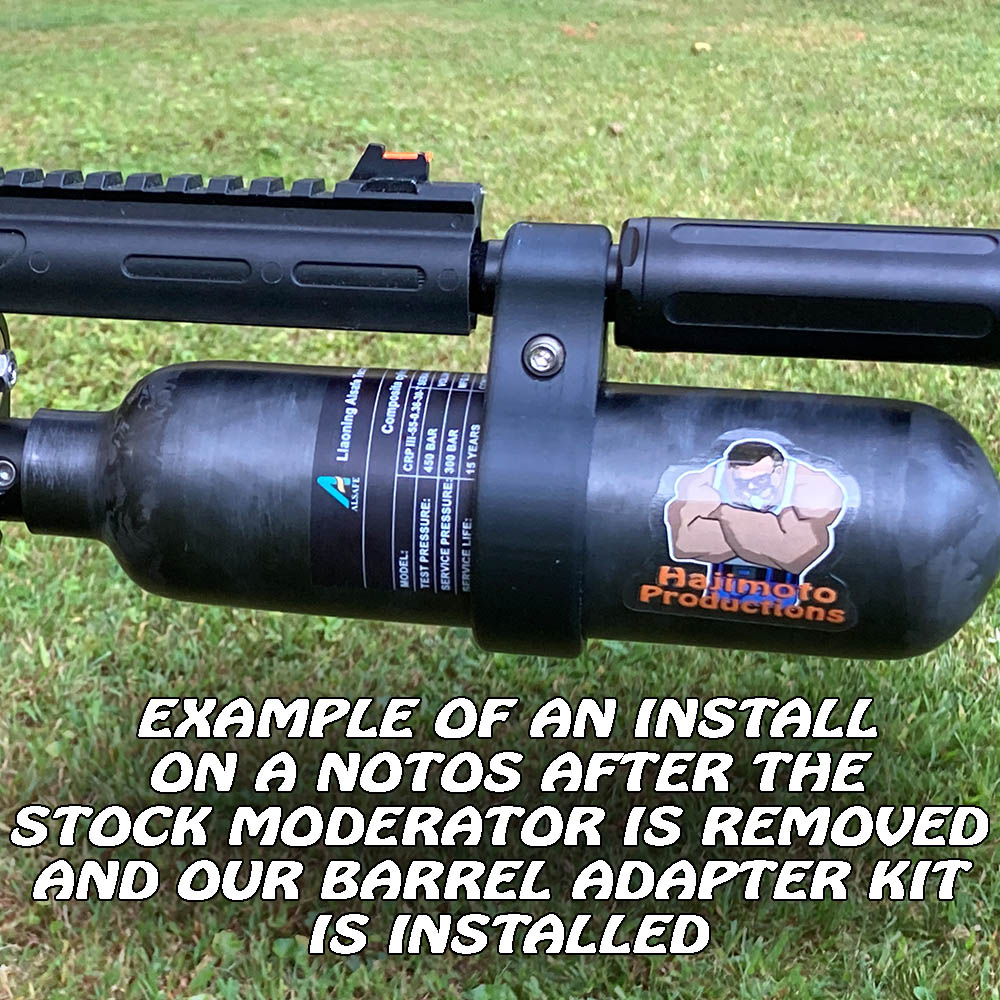

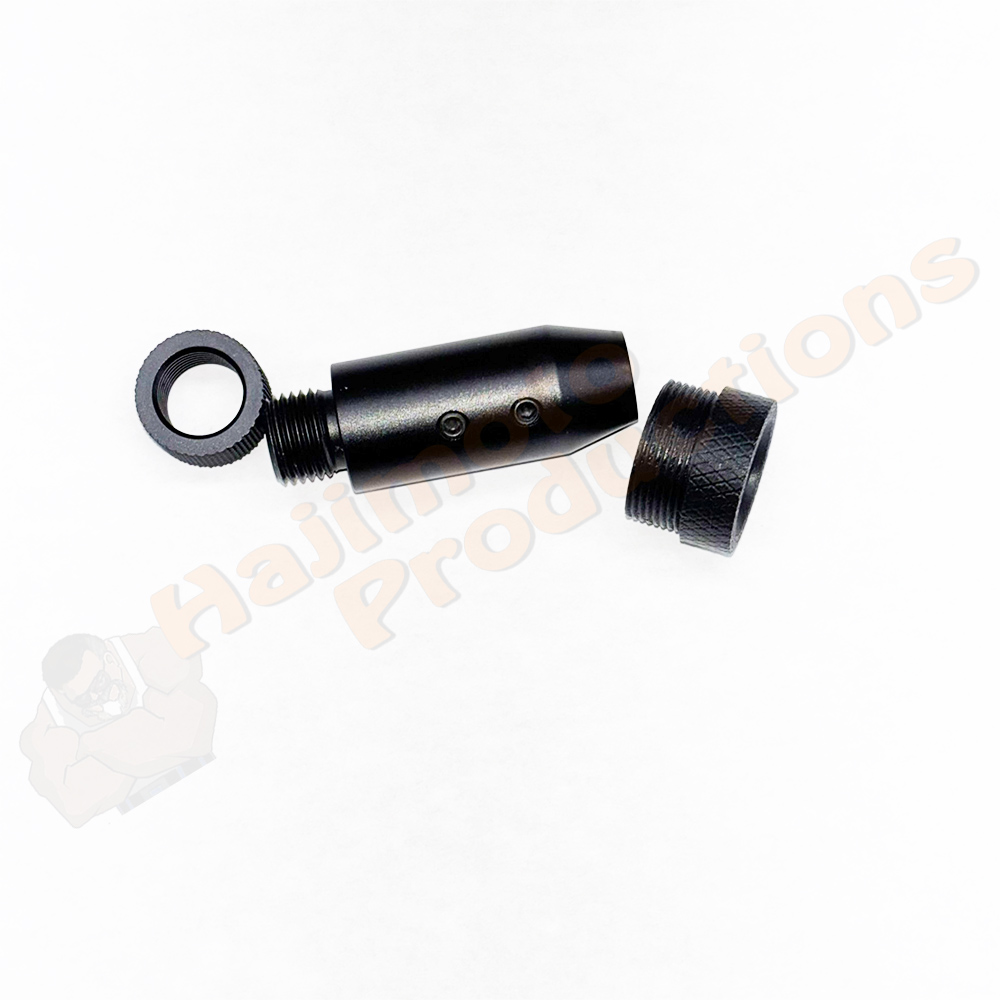

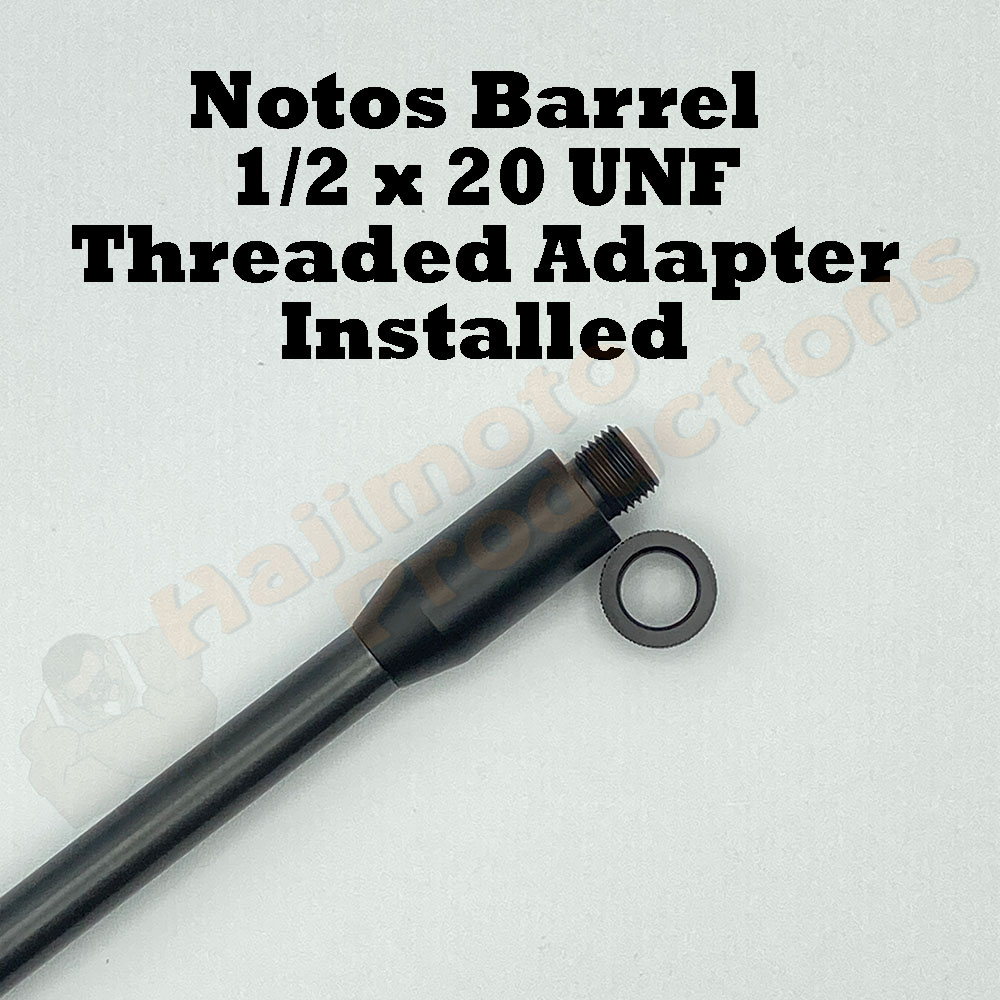

NOTOS Barrel 1/2×20 Adapter Kit

Related products

•

  $179.00 – $189.00Price range: $179.00 through $189.00

  5/8″-18UNF Threaded Unit

  Flex Reg Hajimoto Configurations

  Rated 4.00 out of 5

  $179.00 – $189.00Price range: $179.00 through $189.00





  Ninja Paintballs’ Flex Reg with Custom Gauntlet Configuration.
  Say goodbye to only one fixed output pressure!
  The user has an 800 – 900 psi adjustment swing!
  Requires minor forestock modification.
  The regulator thread is 5/8-18UNF (Bottle Thread) and Typical Paintball Threads of .825-14 NGO (PCP Thread).


  Please note the Flex regulator can be used with any Air, Co2, or Nitrogen driven air gun not just the Gauntlet,  providing it has the correct threading.

  The Ninja Flex regulator is available in any 900 psi spread to a maximum of 3100 psi output. For the Gauntlet, select the proper configuration.
  If you select the Custom Configuration, you will need to use the NOTES above to communicate what you want the maximum output to be. Please note that the highest output the Flex Regulator can be configured for is 3100 PSI, but we can build it to any number below that.  Example, a user wants the maximum output of their Flex regulator to be 2800, we will build the regulator so that the adjustable range of that build is 1800 to 2800PSI.

  How to read the below configurations
  Example: Flex Reg .22 | 4500/1600 to 2400 psi
  Flex Reg .22 = Regulator Type for .22 caliber
  4500/ = The bottle’s maximum fill pressure
  1600 to 2400 psi = The output range of the Flex Reg

  Flex Reg Configuration For Generation 1 Gauntlet .177/.22 Cal
  Stock .177/.22 | 3000/1100PSI Regulator
  Flex Reg .177/.22 |3000/600 to 1500PSI

  Flex Reg Configuration For Generation 1 Gauntlet .25 Cal
  Stock .25 | 3000/1900PSI Regulator
  Flex Reg .25 | 3000/1500 to 2400PSI

  Flex Reg Configuration For Generation 2 Gauntlet .22 Cal
  Stock .22 | 4500/1900PSI Regulator
  Flex Reg .22 | 4500/1500 to 2400PSI

  Flex Reg Configuration For Generation 2 Gauntlet .25 Cal
  Stock .25 | 4500/2100PSI Regulator
  Flex Reg .25 | 4500/1500 to 2400PSI

  Flex Reg Configuration For G30 Cal
  Stock .30 | 4500/2800PSI Regulator
  Flex Reg .30 | 4500/2100 to 3100PSI

  Comes with a dedicated Spanner Wrench for power adjustment. MADE IN THE USA!

  Select options
• Sold out!



  $18.50

  Umarex Gauntlet Regulator Shim Pak

  $18.50

  Hajimoto Productions Regulator Shim Kit For Umarex Gauntlet

  I have put together a very easy and complete stainless steel shim kit so you can adjust your Gauntlets Regulator output. The shims that I have included give you a wide range of adjustability to mix and match different thicknesses to get the regulator to output exactly what you want. The shim kit comes with easy to follow instructions which guide you through the process as to what shims you need to add to typically achieve my recommendations for each Gauntlet Caliber.

  The shim kit contains:

  • 2 – #5 Shims.
  • 1 – #3 Shim.
  • 2 – #2 Shims.
    (Two #2’s = One #4 | Two #5’s = One #10 | One #5 + One #3 = One #8, and so on)

  To take a stock G1 .177/.22 from the stock 1100-1050PSI to my recommended 1350-1400PSI you would add two (2) #5 shims (10).
  To take a stock G1 .25 from the stock 1900-1950PSI to my recommended 2100-2200PSI you would add one (1) #3 shim (3).
  The included two #2 shims are for minor adjustments if you have a finicky regulator.

  DETAILED LESSON/EXAMPLE:
  Let’s say your .22 Gauntlets regulator only puts out 1300PSI after installing the two #5’s when it should be 1350 to 1400PSI, you would add one #2 for a total of 12 to help get it there. If after the addition of the one #2, you’re still 50psi short so you would pull out the #2 and use the #3 for a total of 13.

  Always use a regulator output tester to confirm the output pressure of your regulator. It is the only safe and sure way to properly adjust the pressure of your regulator.

  You have to fill and purge so the Belleville washers settle into the new preload. Be sure to slow fill your bottle the first time only to 500PSI and then purge it, fill slowly a second time to 1000, and then purge fill the final time slowly and watch to be sure the reg has settled and does not exceed your target pressure. If it does exceed your target pressure, stop filling, purge and shim less.

  If you rapid fill, there is a good chance you will pop your burst disc.





  Read more

•

  $45.00

  Air Venturi Avenger Extender 1/2 x 20 Adapter #A70

  $45.00

  Specifically for the AV Avenger

  Not to be used with the Hajimoto Productions Strip Stak Pak (SSP) which is an Air stipper. Spring and Baffle Stack.



  This part is designed and manufactured by DonnyFL

  Select options
