$115.00 – $424.00
Convert your Air Venturi Avenger into a bottle PCP!
Made in South Africa
Installation video below:
This adapter kit requires the stock to be modified.
Remember we design and fabricate a barrel band with Picatinny rail for your bipod for this conversion.

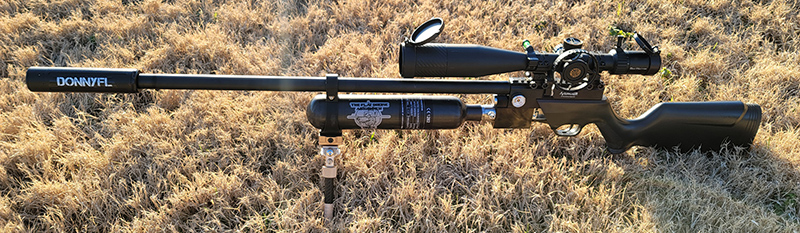

Avenger shown with 580cc Bottle (62-63mm) and my Avenger HP Barrel Band
Replacement O-ring List
Bottle Side O-ring: (QTY: 1)
17.12 x 2.62 (Buna 90) or
17 x 3 (Buna 90)
Adapter to PCP and Blank Off Cap O-rings: (QTY: 3)
12 x 2.5 (Buna 90)
Adapter Middle Collet O-rings: (QTY: 2)
10 x 2 (Buna 70) or
10.5 x 2 (Buna 70)
| Weight | 8 oz |
|---|---|
| Dimensions | 4 × 1.5 × 3 in |
| Cylinder Option | INCLUDE 500cc/0.5L CF Bottle, INCLUDE 700cc/0.7L CF Bottle, DO NOT INCLUDE Bottle |
You must be logged in to post a review.
Air Stripper, Tension Spring and Baffle Stack
UPDATE: The newer avengers have a screw-on barrel shroud and an end cap that is a two-piece unscrewable but the STP still fits and works without an issue. unscrew the shroud rather than the little screw shown in the video and simply unscrew the baffle washer array off the end cap and you are good to go.
Strip Stak Pak for the Avenger
A six piece kit that includes an efficient multiport air stripper that strips and channels air away from the pellet to allow for a more stable and less turbulent pellet launch from the muzzle. The kit also provides baffle chambers to help remove both noise and turbulence in the air stream. The end result is a more laminar air stream which reduces projectile instability and as a secondary benefit, reduces the report of the rifle. This kit is 100% compatible with the stock end cap or the DonnyFL A50 adapter.
Air Stripper comes with o-ring and silicone grease for installation. The installation video for the Umarex Origin Strip Stak Pak is exactly the same so you can follow the installation video below.
Replacement Air Stripper 0-ring is 14mm x 1.5mm
Fits both Avenger and Origin
New new redesigned HP 2.0 magnetic lid design is available for the .22 Caliber!
Here is a high-quality, expanded capacity magazine designed to fit the Umarex Origin in .22 & .25 calibers as well as a version for Air Venturi Avenger in .177, .22 and .25 calibers. This magazine extends your capabilities by increasing the number of shots before requiring a reload. Please remember we stock adjustable height scope rings by WestHunter, EagleVision, and FX, be sure to snag a set if you are worried about clearance issues plus adjustable rings allow you to keep your scope optically center leaving all the turret adjustment-free to use when you need it.
New magnetic lid design. means you simply rotate the projectile carousel and drop in each round. There is no need to preload the spring, you are winding the spring during the loading process. This fits under high-scope rings and some medium-scope rings. Your scope may need to be moved forward or back to clear the turret bell
Features
WATCH THE VIDEO BELOW ON HOW TO LOAD MAGAZINE
Air Venturi Avenger Bottle Conversion Barrel Band
** YOU MUST MEASURE YOUR CYLINDER TO BE SURE. THE ABOVE ARE TYPICAL SIZES YOURS MAY VARY **
The barrel band is designed by Hajimoto Productions and made from ABS and Carbon Fiber for a strong and lightweight design. The barrel band is designed to live at the end of the cylinder as shown and has a section of Picatinny rail on the bottom to allow for the attacking of a bipod, flashlight, camera, or laser pointer. The Picatinny rail is not designed to support the entire air rifle in a clamp or tripod used in standing rests.
This Barrel band is specifically designed for an Avenger that has the Doux bottle conversation kit installed and a 60.5mm to 63mm diameter cylinder.
Assembled and tested by Hajimoto using quality US Parts! Don’t guess what the output of your Gauntlets regulator is, KNOW what it is especially if you are adding shims and need to hit a specific PSI output.
Designed to be used with any Paintball style Regulator that uses the industry-standard G1/2-14 Threads like these shown
We completely tune your supplied Gauntlet 1 or 2 which includes everything listed in the section below.
The service includes a very detailed and time-consuming incoming inspection report that includes photos and other relevant information that detail the condition of the airgun and all of its pieces and parts. This report is provided to you and you must be reviewed and authorized in order for the work to continue.
Ordering procedures:
Shortly after the order is received, you will receive an email notification containing shipping information that will include labeling and packaging requirements.
To better understand how the Gauntlet is transformed from a static you get what you get type of airgun, into an adjustable power and tunable PCP, take a look at this video that demonstrates how the power adjuster works if you should want to increase or decrease the power output for any given ammunition in order to get it to fly at the best rate of travel for that particular ammunition.
HOW TO ADJUST POWER WITH STK
We will build your order based on the information provided from the questionnaire as well as any specific requests, and before the airgun ships, any credits or additional charges will be settled.
THIS IS AN AIRGUN ONLY PART
This part is designed and manufactured by DonnyFL
Remember to always order your suppressor one size larger for shrouded barrel PCP’s.
If you have a .22 caliber shrouded barrel PCP, you’ll want to order a .25 caliber suppressor.
The .177/.22 is for shrouded barrel .177 or direct barrel threaded PCP’s in .22.
The .22/.25 is for shrouded barrel .22 or direct barrel threaded PCP’s in .25.
The .25/.30 is for shrouded barrel .25 or direct barrel threaded PCP’s in .30. The exception to this rule is the Gauntlet .30 which is shrouded but because of the unique end cap, marries the barrel and shroud at the end.
The Tanto, Tatsu, FX, or Sumo are not recommended for the Gauntlet .30 caliber because of the relatively small internal volume of these suppressors and the elevated operating pressures of the G30. We recommend the Ronin be used on all of our G30 Builds.
silverfox0903196o –
Will this work on the Avenge-x?
